EBC 340

3.5" ECX On-board Intel® Atom™ N270 1.6GHz CPU with PCI 104/ Gigabit LAN/ CF
  • Main Feature
  • Support Intel® Atom™ N270 1.6GHz processor with 533 MHz FSB
  • Intel® 945GSE integrated 3D graphics engine GMA950 chipset with CRT and LVDS display
  • 1 x 200-pin SO-DIMM socket, up to 2GB single channel non-ECC 400/533 MHz DDR2 memory
  • Realtek RTL8111C-GR PCI Express Gigabit Ethernet x 1
  • Realtek ALC888 Audio CODEC x 1
  • USB 2.0 x 6, Serial port x 4, SATA x 1 and parallel port x 1
  • CompactFlash Socket x 1/PCI 104 Interface x 1
Add to Inquiry
Datasheet(PDF)

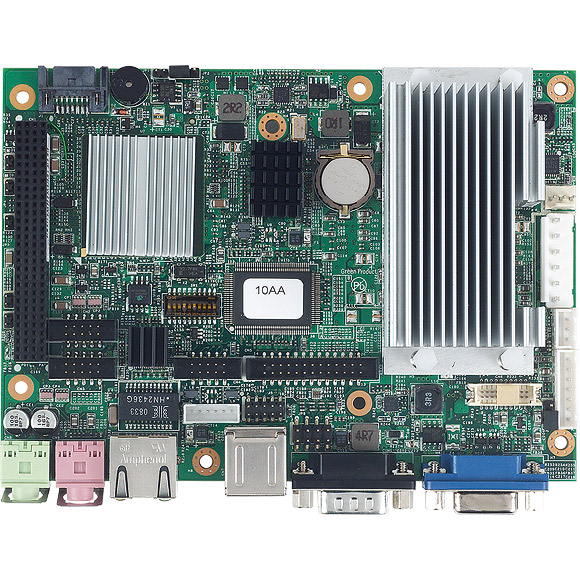

The EBC 340 is a 3.5” ECX embedded board with an on-board Intel® Atom™ N270 1.6GHz processor with 512 KB L2 cache by 533 MHz FSB. The EBC 340 features Intel® 945GSE and ICH7-M chipsets, which supports DDR2 400/ 533 memory along with integrated GMA950 graphics for large display application to support independent CRT and LVDS interface. The EBC 340 embedded board supports a various operation systems such as Windows XP embedded, Win CE and Linux.
