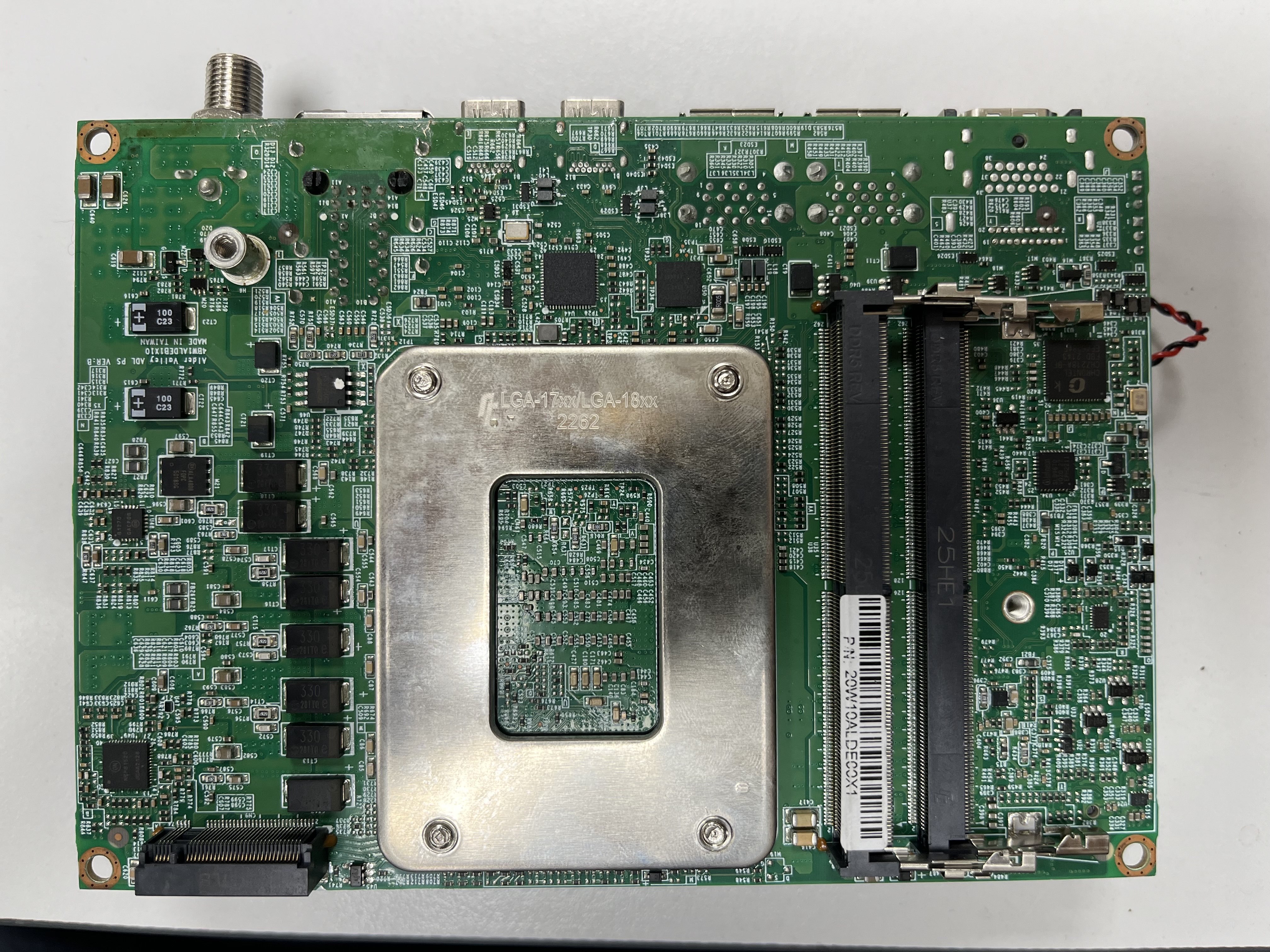

NRD-1800

3.5” Industrail Board 13th Gen Intel® Core™ (Raptor Lake-PS) Processor
  • Main Feature
  • Intel® Core™ Gen13 Processor (Raptor Lake-PS)
  • 2 x 262-pin DDR5 Non-ECC SO-DIMM Socket (up to 4800MT/s)
  • 1 x DP and 1 x HDMI
  • Support 2 x 2.5G Ethernet
  • Support M.2 NVMe
  • 4x USB3.2 Type A Gen2x1
  • 2x USB3.2 Type-C Gen 2x2
  • Support Windows 10 and Linux
Add to Inquiry
Datasheet(PDF)
NRD-1800 is 3.5 inch PC onboard Intel® Core™ (Raptor Lake-PS) Processor (support for Intel® Core™ i3/i5/i7) processor to support 15W CPU.
NRD-1800 operates temperature range from 0°C ~65°C. This is aimed at embedded applications for outdoor or semi-outdoor environment. such as Kiosk, small smart equipment, outdoor systems installed in harsh environments, home automation and thin clients…etc.
NRD-1800 supports SO-DIMM a maximum memory of 64GB DDR5. Also, it offers display outputs of one DP supporting 3840x2160@60Hz and1xHDMI 2.1 Connector Convert DP1.4a to HDMI 2.1 interface, the HDMI port supports display resolutions up to 7680x4320@60Hz, in order to provide the flexibility of supporting a range of peripherals and high resolution.
