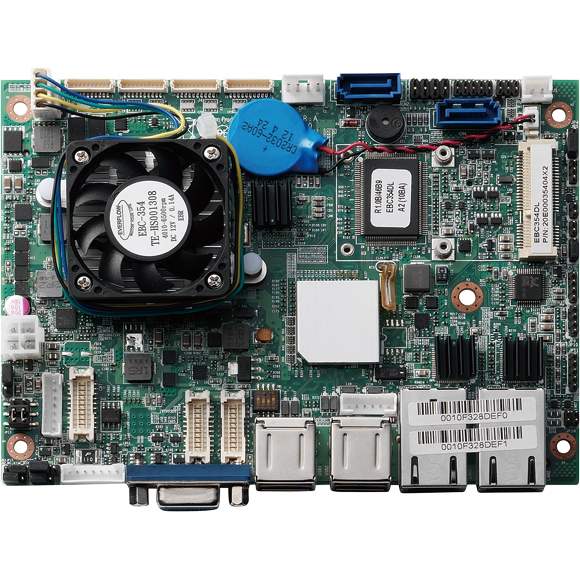

EBC 354DL (EOL)

3.5” SBC On-board Intel® Atom™ processor D2550 1.86GHz with 24-bit LVDS & 24/48Bit LVDS Dual Channels Support
  • Main Feature
  • Onboard Intel® Atom™ processor D2550 1.86GHz CPU
  • Intel® NM10 Express chipset
  • One 204-pin SO-DIMM socket supports up to 4 GB DDR3 800/ 1066 MHz SDRAM
  • Display: VGA & LVDS1 (1x DF13 20-pin 18/24-bit Single channel) & LVDS2 (2x DF13 20-pin 24/48-bit Single channel
  • 2 x Mini-PCIe
  • 2 x Intel® 82574L PCI Express Gigabit Ethernet
  • 2 x SATA
  • 6 x USB, 4-in/4-out GPIO, Mic-in , Speak out
  • Serial port: 3x RS232, 1x RS232/422/485 port
  • Support AT/ ATX mode and Single +12VDC input
Add to Inquiry
Datasheet(PDF)

The EBC 354DL is a 3.5” SBC embedded board with an on-board Intel® Atom™ processorD2550 1.86GHz CPU with 1MB L2 cache, which supports DDR3 800/ 1066 memory, along with integrated SGX545 PowerVR Core @ 400/640 MHz Enhanced Gfx & Video , support DX*10.1,OpenGL 3.0 , Full HD-Decode (MPEG2,VC1,AVC,H.264), along with integrated graphics for large display application to support Multiple Display. Intel® NM10 Express chipset provides two SATA, four serial ports, six USB 2.0 ports, two Gigabit Ethernet LAN port, two Mini-PCIe interface for application. The EBC 354DL is a great solution featuring a low power consumption processor and small footprint with versatile displays and numerous I/O port support at multi-media applications.
