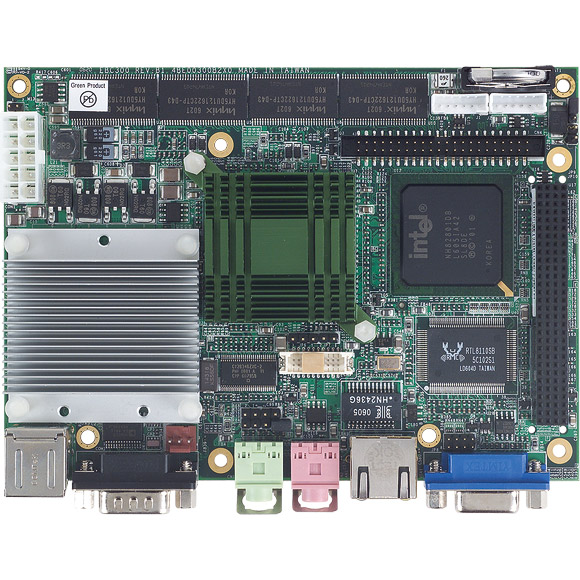

EBC 300

3.5" Board with On-board Intel® Celeron® M 600 MHz CPU or socket P-M/C-M CPU and GBe LAN
  • Main Feature
  • On-board Intel® Celeron® M 600 MHz Processor with 512 KB L2 Cache
  • Intel® 852GM and ICH4 Chipset
  • On-board 256 MB DDR Memory
  • Realtek RTL 8110SC Gigabit Ethernet Controller
  • Audio with Speaker-out, Line-in and Mic-in
  • Supports LVDS/ 6 x USB 2.0
Add to Inquiry
Datasheet(PDF)

A 3.5" board with an on-board Intel® Celeron® M 600 MHz processor with 512 KB L2 cache or socket Pentium® M/Celeron® M with 400 MHz FSB, the EBC 300 features Intel® 852GM and ICH4 chipsets, which supports DDR 200/266 memory, along with integrated graphics with 64 MB shared memory to support CRT and LVDS function. The South Bridge ICH4 provides a 44-pin IDE connector, CompactFlash socket, two serial ports, six USB 2.0 ports, one Gigabit Ethernet LAN port, and an audio interface. The 3.5" board, EBC 300, is a great solution featuring a low power consumption processor with versatile display and numerous I/O port support.
