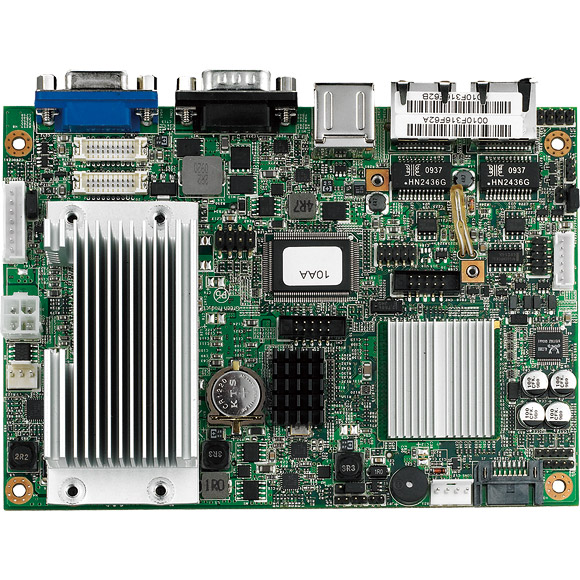

EBC 342

3.5" ECX On-board Intel® Atom™ N270 1.66GHz CPU with 24-bit LVDS/Gigabit LAN/CF
  • Main Feature
  • Onboard Intel® Atom™ N270 1.6 GHz CPU
  • Intel® 945GSE/ICH7-M Chipset
  • One 200-pin SODIMM socket supports up to 2 GB DDR2 400/533 MHz SDRAM
  • Dual Gigabit Ethernet
  • 24-bit LVDs Dual View, 2-CH LVDS
  • 5.1-CH Audio
  • 1 x CF, 1 Mini-PCIe Card
  • 1 x SATA, 3 COM, 6 USB, 16-bit GPIO
Add to Inquiry
Datasheet(PDF)

The EBC 342 is a 3.5” ECX embedded board with an on-board Intel® Atom™ N270 1.6GHz processor with 512 KB L2 cache by 533/ 667 MHz FSB. The EBC 342 features Intel® 945GSE and ICH7-M chipsets, which supports DDR2 400/ 533 memory, along with integrated GMA950 graphics for large display application to support Multiple Display. The South Bridge ICH7-M provides a Compact Flash socket, four serial ports, six USB 2.0 ports, two Gigabit Ethernet LAN port, one Mini-PCIe interface for application. The EBC 342 is a great solution featuring a low power consumption processor and small footprint with versatile displays and numerous I/O port support at industrial applications.
