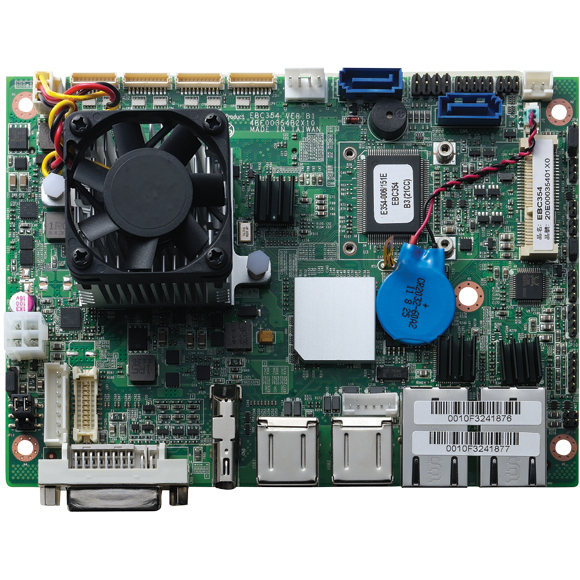

EBC 354 (EOL)

3.5" SBC On-board Intel® Atom™ Processor D2550 1.86GHz with 24-bit LVDS/Gigabit LAN, Dual mini-PCIe
  • Main Feature
  • On-board Intel® Atom™ processor D2550 1.86GHz CPU
  • Intel® NM10 Express chipset
  • One 204-pin SO-DIMM socket supports up to 4 GB DDR3 800/1066 MHz SDRAM
  • Display: DVI-I & HDMI & LVDS (1x DF13 20-pin 18/24-bit Single channel)
  • 2x Mini-PCIe
  • 2x Intel® 82574L PCI Express Gigabit Ethernet
  • 2x SATA
  • 6x USB, 4-in/4-out GPIO, Mic-in , Speak out
  • Serial port: 3x RS232, 1x RS232/422/485 port
  • Support AT/ATX mode and single +12 Vdc input
Add to Inquiry
Datasheet(PDF)

The EBC 354 is a 3.5” SBC embedded board with an on-board Intel® Atom™ processor D2550 1.86GHz CPU with 1MB L2 cache, which supports DDR3 800/1066 memory, along with integrated SGX545 PowerVR Core @ 400/640 MHz Enhanced Gfx & Video, support DX*10.1, OpenGL 3.0, Full HD decode (MPEG2, VC1, AVC, H.264), along with integrated graphics for large display applications to support multiple displays. Intel® NM10 Express chipset provides two SATA, four serial ports, six USB 2.0 ports, two Gigabit Ethernet LAN port, two Mini-PCIe interface for application. Able to support matrixdisplays with rich I/O, the EBC 354 is a great solution featuring a low power consumption and small footprint for multi-media applications.
