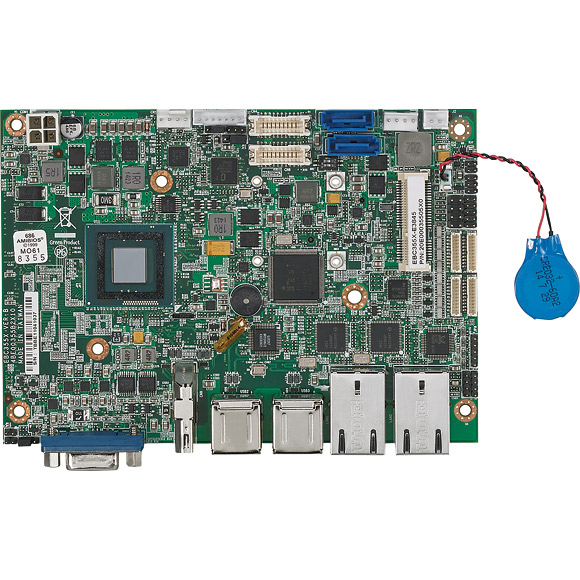

EBC 355X (EOL)

3.5" ECX On-board Intel® Atom™ Processor E3800 Product Family HDMI/VGA/1 x24/48-bit LVDS Dual Channel, Dual Mini-PCIe
  • Main Feature
  • On-board Intel® Atom™ Processor E3800 Product Family
  • One 204-pin SO-DIMM socket supports up to 8 GB DDR3L 1066/1333 MHz SDRAM
  • Display: HDMI/VGA/1 x LVDS (2 x DF13 20-pin 24/48-bit Single channel)
  • 2 x Mini-PCIe
  • 2 x Intel® i210 PCI Express Gigabit Ethernet
  • 2 x SATA 2.0
  • 4 x USB 2.0,, 4-in/4-out GPIO, Mic-in , Speak out
  • Serial port: 3 x RS232, 1 x RS232/422/485 port
  • Support AT/ATX mode and single +12VDC input
Add to Inquiry
Datasheet(PDF)

EBC 355X series of 3.5" boards is based on the multi-core SoC Intel® Atom™ processor E3800 product family (formerly codenamed “Bay Trail”). This series of 3.5” boards operates at wide temperature range with low power consumption, and features USB 2.0 ports and Intel® Gen 7 Graphics with multi-display support. NEXCOM’s EBC 355X series of 3.5-inch boards are aimed at embedded applications. The EBC 355X series support a maximum memory of 8GB DDR3L SDRAM. It also offers four USB 2.0 ports along with three display outputs of VGA, HDMI and LVDS to provide the flexibility to support a range of peripherals and dual display. The 3.5” boards provide reliable operation within wide operating temperature range of -40 to 85 degrees Celsius. The EBC 355X series is ideal for battery-powered portable devices, multimedia HMI panels, outdoor systems installed in harsh environments, home automation and thin clients.
