ATC 3750-IP7-WI8MR
NVIDIA® Jetson AGX™ Orin Solution Performance Edge AI Computing for Rail- Main Feature
- Built-in NVIDIA® Jetson AGX Orin™ SOM, up to 200/275 TOPS (INT8) performance
- Designed to be IP67 rated, rugged, and compact
- 8 MIPI/GMSL2 & 2.5GbE (X-coded) for MIPI CAM/IP CAM/LiDAR sensors
- HEVC/H.265 hardware DECODE, supporting up to 7 x 4K30
- Wide range operating temperature of -25°C~70°C
- Ultra-speed PCIe 4.0 x4 NVMe SSD for data integrity
- Expansible for GNSS, LTE/5G NR & Wi-Fi 5/6
- 24~110VDC w/ isolation, ignition control & OCP/OVP
- NEXCOM Acceleration Linux (NAL) integrated w/ JetPack 5.1.1
- Military standard of MIL-STD-810H for anti-vibration/shock
- CE/FCC, UKCA, EN50155 (EN55011, EN50121-3-2, EN61373, OT3), EN45545-2 certified
AI has become an essential component of automated railway vehicle technologies. With its built-in high performance NVIDIA® Jetson AGX™ Orin SOM, the ATC 3750-IP7-WI8MR can deliver up to 200/275 TOPS workload on Artificial Intelligence (AI) processing and inference, supporting applications such as railway safety assurance, operation optimization, maintenance management, and self-driving train.
Thanks to NEXCOM excellent thermal solutions, ATC 3750-IP7-WI8MR can working through its defined TDP (15W~60W) at the harsh environments without fan kit to achieve 200/275 TOPS workload performance.

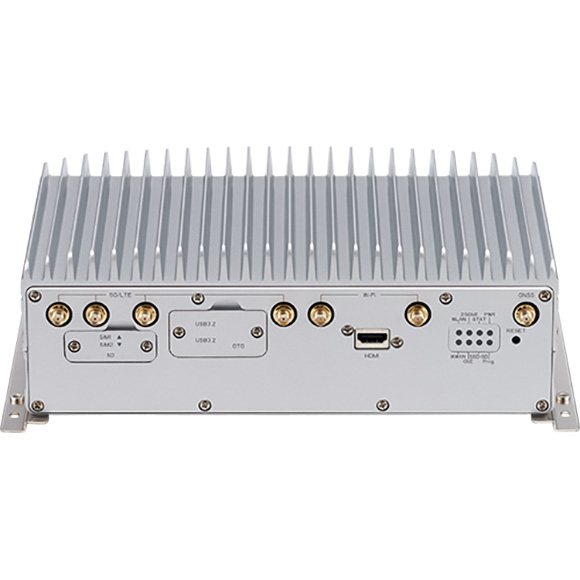

The ATC 3750-IP7-WI8MR is a IP67 rated, rugged, compact-size railway AI powered computer that features 24~110VDC (power isolation) with IGN control, 8 MIPI/GMSL2 for accessing MIPI CAM/LiDAR sensors, and rich peripheral ports: GbE/2.5GbE, USB3.2, isolation CANBus, RS232, Console, DI/DO, OTG, and HDMI. With the installation of 5G NR, Wi-Fi 5/6 modules, the ATC 3750-IP7-WI8MR can collaborate with CPS for AI model re-training, making it suitable for deployment in sophisticated applications such as railway vehicle relevant applications. In harsh environments, the ATC 3750-IP7-WI8MR can operate at a wide temperature range of -25~70°C and meet the MIL-STD-810H military standard for anti-vibration and shock. For regulation, the ATC 3750-IP7-WI8MR is certified by CE/FCC Class A, UKCA, EN50155, and EN45545-2.
