NEXCOM ATC Series
NEXCOM's ATC series product are built with NVIDIA ...
NEXCOM ATC Series
|

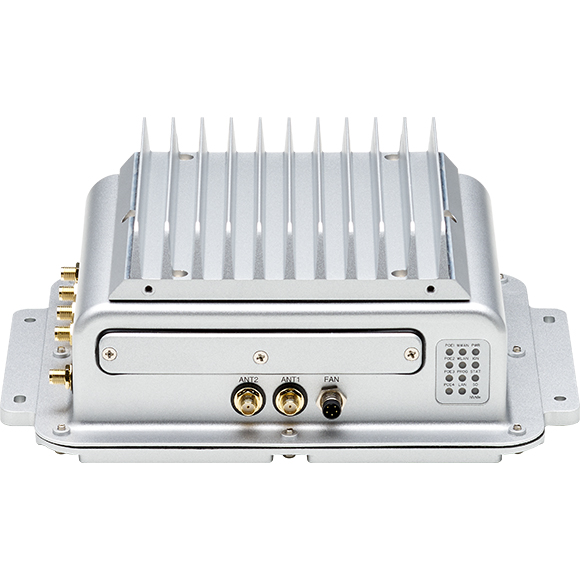

ATC 3560-IP7-NA4C
NVIDIA® Jetson Orin Nano™ Solution Accelerated Edge AI Computer- Main Feature
- Built-in NVIDIA Jetson Orin Nano™ SoM, up to 67 INT8 Sparse TOPS AI performance in Super Mode
- 4 x GbE PoE+ port for IP CAM/LiDAR sensors
- HEVC/H.265 hardware codec, 11 x 1080p30 compute power (decoded)
- Wide range operating temperature of -25°C~60°C (fanless, in Super Mode)
- The rugged, compact-sized, fanless design with IP67 rating
- Ultra-speed PCIe 4.0 x4 NVMe SSD for data integrity, 128GB SSD in default
- NEXCOM Acceleration Linux (NAL) OS w/ JetPack 6.2 integrated
- Expansible for LTE/5G NR & Wi-Fi 5/6
- 9V~36V DC-in with ignition control & OCP/UVP
- CE/FCC, UKCA, and E-mark certified
AI has become a vital part of autonomous vehicle technologies. Equipped with the high-performance NVIDIA Jetson Orin Nano™ SoM, the ATC 3560-IP7-NA4C delivers up to 67 TOPS of AI inference performance in Super Mode, making it ideal for applications such as Advanced Driver Assistance Systems (ADAS) in transportation and construction, Automatic Number Plate Recognition (ANPR), Autonomous Mobile Robots (AMR), Machine Learning (ML), Intelligent Transportation Systems (ITS), and factory automation.
Thanks to NEXCOM’s advanced thermal design and its full IP67 rating, the ATC 3560-IP7-NA4C can maintain up to 67 TOPS even in harsh conditions, enabling consistent real-time AI inference.
The ATC 3560-IP7-NA4C is purpose-built for in-vehicle AI computing. It supports DC 9V to 36V power with IGN control, and features four GbE PoE ports for long-distance IP cameras and LiDAR sensors. It also offers a wide range of I/O, including USB 3.2, isolated CAN bus, RS-232, console port, digital I/O (DI/DO), OTG, and HDMI®. With optional 5G NR and Wi-Fi 5/6 modules, the ATC 3560-IP7-NA4C can connect with CPS (Cyber-Physical Systems) for AI model retraining, enhancing inference precision in the field.
Built to endure tough conditions, the ATC 3560-IP7-NA4C supports an operating temperature range of -25°C to 60°C, and complies with MIL-STD-810H for resistance to shock and vibration. It is certified to CE/FCC Class A, UKCA, and E-mark standards.
