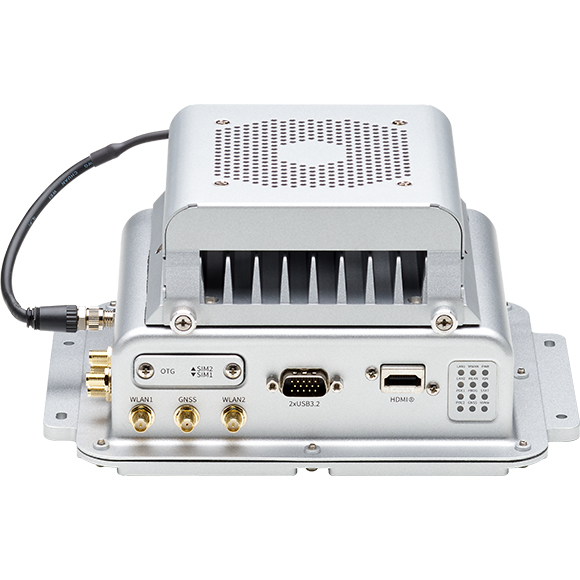

ATC 3562-IP7-NX4MF

NVIDIA® Jetson Orin™ NX Solution Accelerated Edge AI Computer
  • Main Feature
  • Built-in NVIDIA® Jetson Orin™ NX 8GB/16GB SoM, up to 157 TOPS AI performance in Super Mode
  • The rugged, fanless/fan kit design with full IP67 rating
  • 4-CH GMSL2 & 2 x GbE for camera & LiDAR sensors
  • HEVC/H.265 hardware decode, supports up to 11 x 1080p@30Hz
  • Wide range operating temperature of -25°C~65°C (w/ fan kit in Super Mode)
  • Ultra-speed PCIe 4.0 x4 NVMe SSD for data integrity
  • Expansible for GNSS, LTE/5G NR & Wi-Fi 5/6
  • DC 9V~36V & 24V rail combined, ignition control and OCP/OVP
  • NEXCOM Acceleration Linux (NAL) OS w/ JetPack 6.2 integrated
  • Military standard of MIL-STD-810H for anti-vibration/shock
  • CE/FCC UKCA, E-mark, EN 50155 & EN 45545-2 certified
Add to Inquiry
Datasheet(PDF)

AI has become a vital part of autonomous vehicle technologies. Equipped with the high-performance NVIDIA® Jetson Orin™ NX SoM, the ATC 3562-NX4MF delivers up to 157 TOPS of AI inference performance (16GB version in Super Mode), making it ideal for applications such as Advanced Driver Assistance Systems (ADAS) in transportation and construction, Automatic Number Plate Recognition (ANPR), Autonomous Mobile Robots (AMR), Machine Learning (ML), Intelligent Transportation Systems (ITS), railway safety assurance, and factory automation.

Thanks to NEXCOM’s advanced thermal design and its full IP67 rating, the ATC 3562-NX4MF can maintain up to 117 TOPS (8GB version), or 157 TOPS (16GB version) even in harsh conditions, enabling consistent real-time AI inference.

The ATC 3562-NX4MF is purpose-built for in-vehicle and railway AI computing. It supports DC 9V to 36V/24V rail power with IGN control, and features 4-CH GMSL2 interface and GbE PoE functionality for long-distance GMSL2 cameras and LiDAR sensors. It also offers a wide range of I/O, including USB 3.2, isolated CAN bus, RS-232, console port, digital I/O (DI/DO), OTG, and HDMI®. With optional 5G NR and Wi-Fi 5/6 modules, the ATC 3562-NX4MF can connect with CPS (Cyber-Physical Systems) for AI model retraining, enhancing inference precision in the field.

Built to endure tough conditions, the ATC 3562-NX4MF supports an operating temperature range of -25°C to 65°C, and complies with MIL-STD-810H for resistance to shock and vibration. It is certified to CE/FCC Class A, UKCA, EN 50155, EN 45545-2, and E-mark standards.
