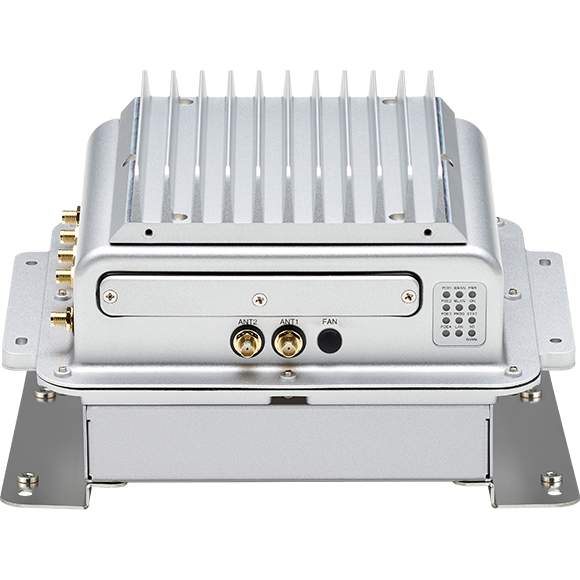

ATC 3560-IP7-NXAI4CR
NVIDIA Jetson Orin™ NX Solution Accelerated Edge AI Computer- Main Feature
- Edge AI rail computer
- Built-in NVIDIA Jetson Orin™ NX SoM, up to 100 INT8 Sparse TOPS AI performance
- 4 x GbE PoE+ port for IP CAM/LiDAR sensors
- HEVC/H.265 hardware codec, 18 x 1080p30 compute power (decoded)
- The rugged, fanless design with full IP67 rating
- Ultra-speed PCIe 4.0 x4 NVMe SSD for data integrity, 128GB SSD in default
- NEXCOM Acceleration Linux (NAL) OS w/ JetPack 6.2 integrated
- Expansible for LTE/5G NR & Wi-Fi 5/6
- 24V rail DC-in with ignition control & OCP/OVP
- CE/FCC, UKCA, and EN 50155 certified
AI has become a vital part of autonomous vehicle technologies. Equipped with the high-performance NVIDIA Jetson Orin™ NX SoM, the ATC 3560-IP7-NXAI4CR delivers up to 100 TOPS of AI inference performance while consuming 25W low power. This is suitable for AI power IoT gateway, OHV AI Edge recognition, AI traffic sign control, and factory automation/machine vision, enhancing productivity and lowering TCO.
The ATC 3560-IP7-NXAI4CR is a fanless, compact, and IP67 certified computer. It features rail DC 24V power input with IGN control, four PoE+ ports for IP CAM deployment to 4K@30Hz/1080@60Hz. Moreover, the ATC 3560-IP7-NXAI4CR is designed with diverse peripheral ports, like USB 3.2, isolated CAN bus, RS-232, Console, DI/DO, OTG, and HDMI® for connecting to a wide range of devices/sensors.
With the 5G NR, Wi-Fi 5/6 modules installed, the ATC 3560-IP7-NXAI4CR can enhance AI inference through Cloud Service Provider (CSP). As for harsh environment applications, the ATC 3560-IP7-NXAI4CR can operate at a wide range temperature of -35~70°C and meet the MIL-STD-810G military standard for vibration and shock resistance. In terms of regulation, the ATC 3560-IP7-NXAI4CR is compliant with CE/FCC Class A, UKCA, and EN 50155.
