NISE 104 (EOL)
Intel® Atom™ Dual Core D2550 1.86 GHz Fanless System- Main Feature
- Onboard Intel® Atom™ Dual Core D2550 processor, 1.86 GHz
- Intel® NM10 Express chipset
- 1x DVI-I & 1x HDMI display output
- Dual Intel® 82574L GbE LAN ports; Support WoL, teaming and PXE
- 2x RS-232/422/485 and 2x RS-232
- 6x USB2.0
- 1x external CFast socket
- 1x mini-PCIe with two antenna holes
- Support +10 to 28VDC input; Support ATX power mode

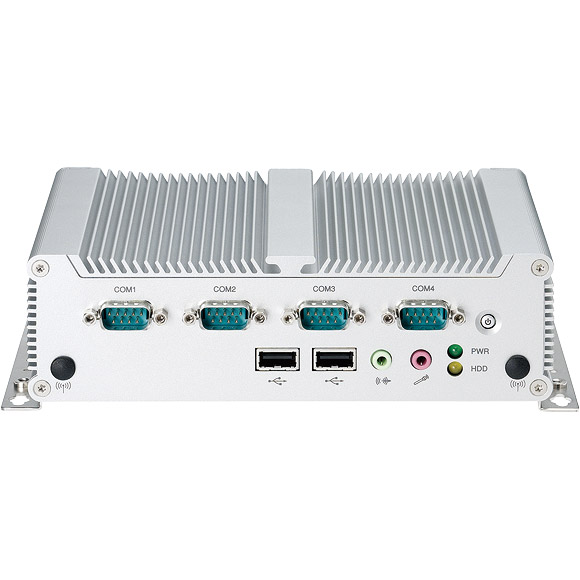

Powered by Intel® Atom™ Dual Core D2550 1.86 GHz and NM10 PCH, NISE 104 has higher graphic and computing performance, but 3 Watts less power consumption compared with previous Atom platform! With performance enhance, NISE 104 still follow NISE guideline with fanless and cables-less concept housed in a compact chassis, 185mm (W) x 131mm (D) x 54mm (H). The NISE 104 offers dual independent display capability through DVI-I and HDMI connectors, Dual Intel GbE LAN ports, 6x USB2.0, 2x RS-232, 2x RS-232/422/485, CFast socket and miniPCIe socket for optional wireless module connection, either WiFi or 3.5G module.
NISE 104's support for 9-36V DC input enhances its reliability in different power condition in factory automation or machinery automation. With Dual independent display and super graphic performance, the NISE 104 is an idea choice for public information, self-service Kiosk, access control or data acquisition controller…etc.
