NISE 50 A04-03

Intel® Processor N-series N97 Fanless PC
  • Main Feature
  • Onboard Intel® Atom® Processor N97 quad-core 2.0GHz
  • 1 x HDMI®
  • 3 x 2.5GbE LAN; supports WoL, teaming,
    PXE, and EtherCAT
  • Storage support 2 x M.2 SATA SSD
  • 1 x M.2 2230 Key A for Wi-Fi 4/5/6E module
  • 1 x M.2 3042/3052 Key B for 4G/5G module
  • 6 x USB 3.2
  • 2 x DB9 for RS-232/422/485
  • Support 12~24V DC input; supports AT/ATX power mode
Add to Inquiry
Datasheet(PDF)

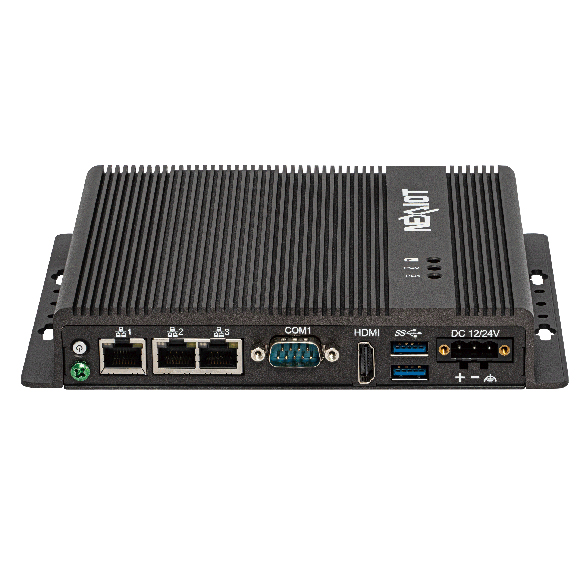

NISE 50 A04-03 is a fanless PC powered by the latest generation Intel® N97 processor. It delivers power-efficient performance designed for next-generation industrial edge embedded systems that require high-resolution graphics and low power consumption - such as industrial automation, intelligent transportation, retail, and smart city IoT solutions.



NISE 50 A04-03 supports an operating temperature range of -20°C to 60°C, ensuring reliable performance in industrial environments. It features strong connectivity with 3 x 2.5GbE LAN ports and 2 x COM ports, ideal for Modbus TCP and Modbus RTU communication. The system supports scalable networks and flexible storage configurations with 1 x M.2 slot for 5G/LTE, 1 x M.2 slot for Wi-Fi and Bluetooth, and 1 x M.2 slot for storage. It also supports 12V DC/24V DC power input and features onboard TPM 2.0 for enhanced security.
