NEXCOM ATC Series
NEXCOM's ATC series product are built with NVIDIA ...
NEXCOM ATC Series
|

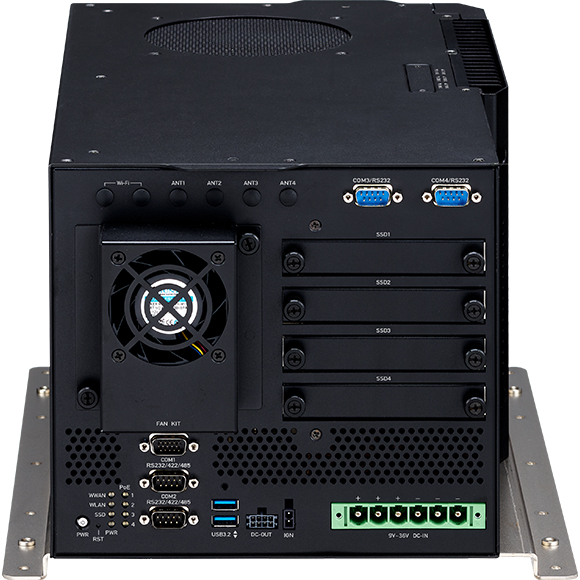

ATC 8120-C4F
Intel® Core™ Processor (Series 2) with AI Inference Accelerator for Autonomous and Machine Vision- Main Feature
- Powered by AI inference accelerator for in-vehicle applications
- Configurable for up to 600W discrete graphics card
- Built-in high performance Intel® Core™ Processor (Series 2)
- Support up to total 4 PCIe 5.0/4.0 x16/x8/x4 slots for expansion
- Ultra speed M.2 Key M NVMe & 4 x 2.5” SSD for data integrity
- RAID 0/1/5/10 configurable for data secure
- DC 9V~36V input with ignition control & OCP/UVP
- 4 x 2.5GbE PoE, up to PoE++ (IEEE 802.3bt) support
- Rich communication ports: 6 x USB 3.2, 2 x CAN FD, and 4 x UART
- Telemetric functionality with 2 x WWAN/5G NR, 1 x WLAN, and GNSS/DR/RTK support
- Military standard of MIL-STD-810H for anti-vibration/shock
- CE/FCC, UKCA, and E-mark certified
AI has become a crucial component of autonomous vehicle technologies. The ATC 8120-C4F, equipped with high-performance Intel® Core™ Processor (Series 2) and a powerful dedicated NVIDIA® GeForce RTX™ 5090 graphics card featuring 21,760 CUDA® cores, delivers up to hundreds of TOPS in AI inference performance. This makes it ideal for applications such as Advanced Driver Assistance Systems (ADAS) in transportation and construction, Automatic Number Plate Recognition (ANPR), Autonomous Mobile Robots (AMR), Machine Learning (ML), Intelligent Transportation Systems (ITS), and factory automation.
Thanks to NEXCOM’s advanced thermal design, the ATC 8120-C4F can maintain high CPU computing performance even when paired with a graphics card like the NVIDIA® GeForce RTX™ 5090 with 600W thermal power, operating reliably under harsh conditions to enable consistent real-time AI inference.
The ATC 8120-C4F is purpose-built for in-vehicle and transportation AI computing. It supports DC 9V to 36V power input with IGN control and features four 1GbE PoE ports (IEEE 802.3at/at/bt). It can be optionally expanded to support up to twelve Ethernet ports via add-on cards, ideal for long-distance IP cameras and LiDAR sensors. It also offers a wide range of I/O interfaces, including six USB 3.2 ports, dual isolated CAN bus, dual COM ports (RS-232), dual COM ports (RS-232/422/485), digital I/Os (DI/DO), and dual HDMI® outputs. With optional 5G NR and Wi-Fi 5/6 modules, the ATC 8120-C4F can connect to Cyber-Physical Systems (CPS) for AI model retraining, enhancing inference accuracy in the field.
Built to withstand tough environments, the ATC 8120-C4F supports an operating temperature range of -30°C to 70°C (without a graphics card installed) and complies with MIL-STD-810H standards for shock and vibration resistance (with a graphics card installed). It is certified to CE/FCC Class A, UKCA, and E-mark standards.
