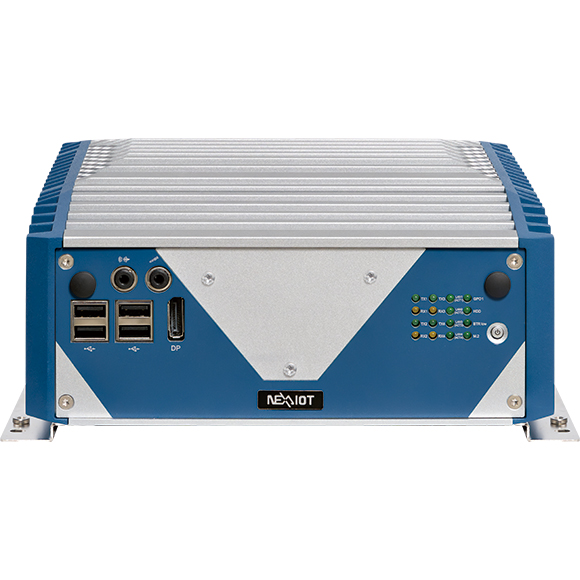

NISE 3910E-A

13th/12th Generation Intel® Core™ i9/i7/i5/i3 Industrial Automation Fanless System
  • Main Feature
  • Support 13/12th Gen Intel® Core™ i9/i7/i5/i3 LGA1700 socket type embedded processor
  • Intel® Q670E PCH
  • Support 2 x DDR5 SO-DIMM, up to 64GB
  • 4 x Intel® i226-IT LAN ports, supports WoL, teaming, and PXE
  • 1 x DP, 1 x HDMI®, and 1 x VGA with independent display
  • 1 x M.2 3042/3052 Key B supports LTE/5G module
  • 1 x Outside accessible M.2 2242 Key M with PCIe x4, supports NVMe
  • 6 x USB 3.2 Gen 1, 4 x USB 2.0
  • 2 x Isolated RS-232/422/485 with auto-flow and 1 x RS-232
  • 1 x Mini PCIe slot, supports optional Wi-Fi, 3.5G, 4G LTE
  • 1 x 2.5” SATA HDD/SSD
  • Support +24V DC input; support ATX power mode
  • TPM 2.0 default onboard
Add to Inquiry
Datasheet(PDF)

Integrated with 13/12th Gen Intel® Core™ i9/i7/i5/i3 processor, NISE 3910E-A is the fanless PC designed for industrial automation and edge computing which demand high CPU and graphics performance. NISE 3910E-A supports up to 64G DDR5 memory and have several options on storage devices like M.2, HDD or SSD. NISE 3910E-A supports wide range of DC input from +12V to 30V DC input, and can be operated in an extended temperature range between -20 to 60 Celsius degree. For extended module availability, NISE 3910E-A is also equipped with one internal mini-PCIe sockets to support IoT wireless connectivity applications (support optional Wi-Fi, 3.5G, 4G LTE modules), also 5G module via M.2 3052 Key B.
