NISE 4310-E01

Intel Atom® x6425E Quad Core Fanless System
  • Main Feature
  • Onboard Intel Atom® x6425E Quad Core processor, 2.0 GHz
  • 2 x Display output, 1 x HDMI and 1 x DP port
  • 6 x Intel® I225-IT 2.5GbE TSN LAN ports; support WoL, teaming and PXE
  • Support both 2.5” and M.2 SATA SSD
  • 1 x mini-PCIe Wi-Fi/LTE wireless module
  • 2 x USB 3.1
  • 4 x USB2.0
  • 2 x DB9 for RS232/422/485
  • 2 x DB9 for RS232
  • Support -20°C~60°C extended operating temperature
  • Support 9~30V DC input; support AT/ATX power mode
Add to Inquiry
Datasheet(PDF)
CPU Support Onboard Intel Atom® x6425E Quad Core processor, 2.0 GHz
Main Memory 1 x DDR4 2666 SO-DIMM socket, support up to 16GB
Display Option Dual independent display: HDMI + DP

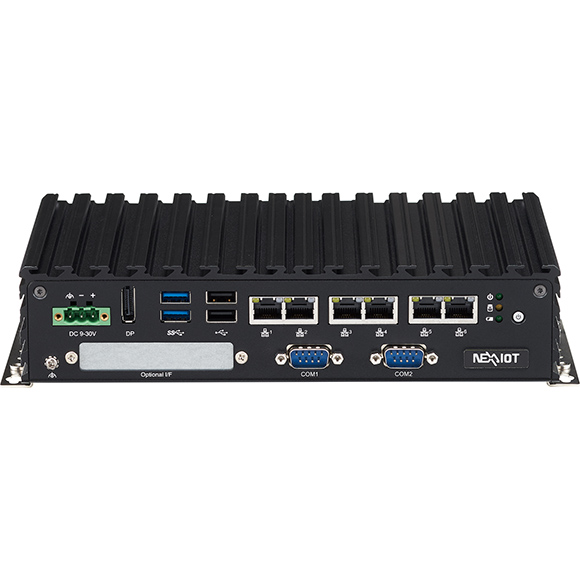

I/O Interface-Front ATX power on/off switch LED indicator: power status, HDD access, RTC battery low 6 x Intel® I225-IT 2.5GbE TSN LAN ports; support WoL, teaming and PXE 2 x USB3.1 ports (900mA per each) 2 x USB2.0 ports (500mA per each) 1 x Display port 2 x DB9 for COM1 & COM2, support RS232/422/485 with auto flow control, BIOS setting 1 x Optional I/F opening for optional function output or module interface use 1 x 3-pin DC input, support +9 to 30VDC input
I/O Interface-Rear 2 x USB2.0 ports (500mA per each) 1 x 2-pin remote power on/off switch 1 x HDMI port 2 x DB9 for COM3 & COM4, support RS232 only 2 x connector holes for optional Mic-in / Line-out 6 x antenna holes for 5G/LTE/Wi-Fi
I/O Interface-Internal 4 x GPI and 4 x GPO (5V, TTL type) 1 x NANO-SIM holder TPM2.0 (optional) Mic-in / Line-out (optional)
Storage Device 1 x 2.5" HDD (SATA 3.0) 1 x M.2, support B, B+M key module (2242)
Expansion Slot 1 x mini-PCIe socket support optional Wi-Fi/4G LTE modules 1 x M.2 Key B socket support optional 5G/ 4G LTE/ Storage modules
Power Requirements Power input: +9 to 30 Vdc
Dimensions 238mm (W) x 145mm (D) x 54mm (H) without wall-mount bracket
Construction Aluminum chassis with fanless design
Environment Operating temperature:
Ambient with air flow: -20°C to 60°C
(according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) Storage temperature: -20°C to 80°C Relative humidity: 95% at 40°C Shock protection:
- HDD: 20G @ wall mount, half sine, 11ms (operation), IEC60068 2-27
- M.2: 50G @ wall mount, half sine, 11ms (operation) , IEC60068 2-27 Vibration protection w/ M.2 & SSD condition:
- Random: 2Grms @ 5~500 Hz, IEC60068-2-64
- Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6
Certifications CE approval
- EN61000-6-2
- EN61000-6-4 FCC Class A
Support OS Windows 10 IoT Enterprise, 64-bit Windows 11 Linux Kernel version 4.1
