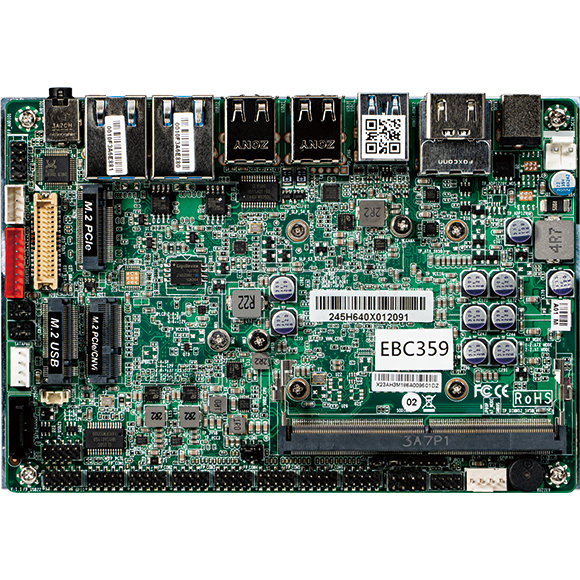

EBC 359

3.5” single board computer with Intel® N-series Processor
  • Main Feature
  • Onboard Intel® Processor N-series Processors (formerly Alder Lake N) Intel® Processor N97
  • 1 x DDR5 4800MHz SO-DIMM up to 16GB
  • 2 x Intel i225V 2.5GbE
  • 2 x HDMI 2.0b, 1 x eDP (co-layout LVDS), 1 x LVDS w/ Inverter
  • 1 x SATA 3.0 (6Gb/s) , 6 x COM
  • 1 x USB 3.2 (Gen 2) Type-A, 8 x USB 2.0, 1 x USB Type-C (ALT mode)
  • 1 x M.2 2280 Key M support NVMe
  • 1 x M.2 2230 Key E support CNVi
  • Support 12~28V DC-in
Add to Inquiry
Datasheet(PDF)
CPU/Chipset Onboard Intel® processor N-series processors (formerly Alder Lake N) Intel® processor N97
Main Memory 1 x DDR5 4800MHz, single channel SO-DIMM up to 16GB
BIOS UEFI BIOS
Display Intel® UHD graphics 1 x LVDS/eDP/MIPI-DSI, up to 1920 x 1200@60Hz) (support 12V/2A panel) (optional eDP) 2 x HDMI 2.0b, up to 4096 x 2160@60Hz 1 x DP 1.4a, up to 4096 x 2304@60Hz (from external USB Type C) Support triple displays
Ethernet 2 x Intel i225V 2.5GbE
Storage 1 x SATA 3.0 1 x SATA power connector 1 x M.2 2280 Key M (PCIe 3.0 x2) support NVMe
Expansion Slot 1 x M.2 3042/3052 Key B (USB 3.1/USB 2.0 interface) support 4G/5G module 1 x M.2 2230 Key E (PCIe x 1/USB 2.0 interface) support CNVi
Internal I/O 4 x USB 2.0 1 x RS232/422/485 (COM 1 support 5V/12V) 5 x RS232 1 x LVDS (optional eDP) 1 x Audio header 8-bit GPIO, SMBUS, 1 x CPU smart fan, Nano SIM, HDD LED, PWR LED, power button, reset
Audio 1 x audio (Line-out/MIC combo)
Watch Dog 256 levels
External I/O 2 x HDMI 2.0b 1 x DP1.4a (from external USB Type C) 2 x 2.5GbE 1 x USB 3.2 (Gen 2) Type C (ALT mode) 1 x USB 3.2 (Gen 2) 4 x USB 2.0 1 x Audio jack (Line-out/MIC combo) 1 x 12V~28V DC in jack
Dimensions 148mm x 102mm (5.8" x 4")
Power Requirement 12~28V DC-in Support both AT and ATX power supply mode
Environment Board level operation temperature: -20°C to 60°C Storage temperature: -20˚C to 85˚C Relative humidity: 10%~90% RH (non-condensing)
Certifications Meet CE / FCC Class A
OS Support Windows® 10 64-bit, Windows® 11 64-bit
