EBC 370/EBC 370X

3.5" SubCompact Board with 13th Gen Intel® Core™ Processor
  • Main Feature
  • Intel® 13th Gen Intel® Core™ i7 processor, 15W, 28W
  • 1 x DDR5 5200 SO-DIMM, non-ECC, up to 32GB
  • 1 x VGA, 1 x HDMI®, supports multiple displays
  • TPM 2.0
  • 24V DC IN
  • 4 x 2.5 GbE LAN
  • 3 x USB 3.2 Gen2, 3 x USB 2.0, 2 x RS-232, 2 x RS-232/485/422, 1 x SATA 3.0 , 16-bit GPIO (8 IN , 8 OUT)
  • 1 x MXM slot (PCIe x4 LANS for MXM GPU card support)
  • 1 x M.2 Key B , 1 x M.2 Key M
Add to Inquiry
Datasheet(PDF)

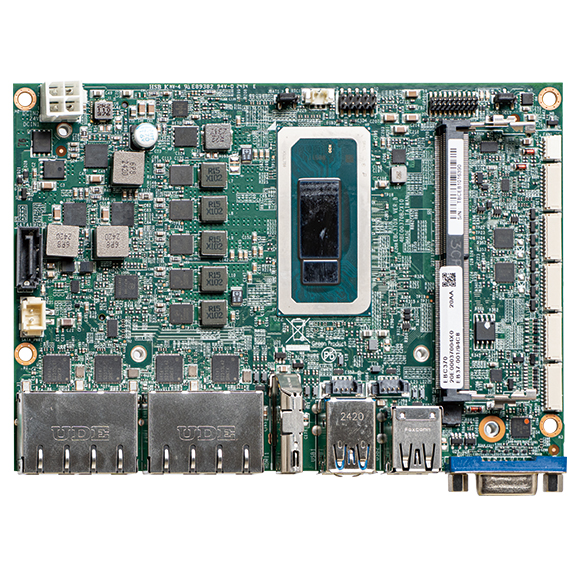

The EBC370/EBC370X is a 3.5” single board computer (SBC) powered by 13th Gen Intel® Core™ processors. It features a SO-DIMM socket, supporting up to 32GB of DDR5 5200MHz memory with non-ECC support, along with integrated Intel® Iris® Xᵉ graphics.



Designed for performance and versatility, the EBC370/EBC370X includes an MXM slot, accommodating graphics accelerator cards or I/O expansion cards to meet diverse AI and visual needs.



With a wide operating temperature ranging from -20°C to 70°C, the EBC370X sustains in harsh environments, making it ideal for outdoor and semioutdoor embedded applications including kiosks, home automation, and thin clients.
