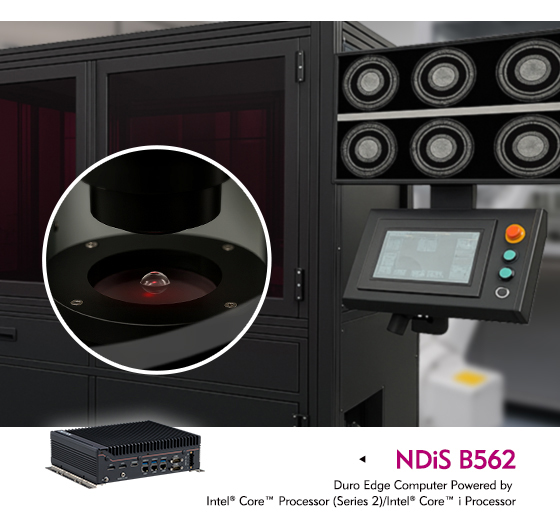

The NDiS B562: Powering Precision in Edge AI and AOI Applications

In an era defined by digital transformation, precision and performance are key to maintaining manufacturing excellence. This is especially critical in demanding production environments and in Automated Optical Inspection (AOI) applications — particularly in the orthokeratology industry, where quality control must be flawless. With global revenue expected to grow by 6.4% annually over the next three years, this market presents a strong opportunity. It needs an edge computing system that combines robust industrial design with cutting-edge performance to meet the challenges of AOI and edge AI applications.

The NDiS B562 Duro Edge computer is purpose-built for these demanding production environments, such as contact lens manufacturing. It delivers the stability, scalability, and intelligence needed to ensure every product meets exacting standards.

Redefining industrial intelligence

Fanless, rugged, and highly configurable, the NDiS B562 is engineered to thrive in harsh environments while maintaining superior performance. It features a sturdy aluminum enclosure for efficient heat dissipation, ensuring stable performance without a fan. Supporting 45W/35W CPU configurations within a wide temperature range of -20°C to 60°C, the NDiS B562 offers exceptional versatility. Its compatibility with Intel^® Core™ Processor Series 2 and 12th to 14th Gen CPUs, DDR5 memory, and SATA RAID functionality ensures both computing strength and data security. Whether deployed in AOI systems, sorting machines, or other vision-based automation, the NDiS B562 empowers manufacturers to achieve higher precision, better yields, and smarter production.

High-performance edge computing for AOI precision

The edge computing system supports the latest Wi-Fi 7.0 and PCIe 5.0 standards for enhanced connectivity and high-speed data transfer. This allows it to handle mid- to high-end GPUs for powerful visual inspection through AI-enhanced AOI systems. When paired with AI cameras, the system rapidly analyzes and detects microscopic defects that often go unnoticed by human inspectors. This capability dramatically improves accuracy and throughput in precision manufacturing, helping factories minimize human error and material waste.

Modular expansion with DockInfinity™

Built for flexibility, the NDiS B562 introduces the DockInfinity expansion kit, allowing users to easily upgrade performance or add functionality – such as extra PCIe slots or dual SSD bays for dedicated graphics or additional network interfaces – without replacing the entire system. The design cleverly reuses the NDiS B562’s side aluminum panel, reducing part waste while simplifying installation. This modular approach offers manufacturers a scalable, sustainable way to keep pace with evolving AI workloads.

Advanced connectivity for real-time insights

Supporting up to three independent displays, Wi-Fi 7, a host of I/Os, and wide-range power input (+12V to 24V), the NDiS B562 ensures seamless communication between AI cameras, sensors, and sorting machines. Once a defective product is detected, data is instantly transmitted to cloud platforms for real-time analysis and continuous process improvement. This tight integration of sensing, inspection, and data feedback creates a complete smart manufacturing ecosystem at the edge. Its wide-voltage design allows devices to tolerate power fluctuations, reducing the risk of failure or damage from inconsistent power.

Main Features

• Intel^® Core™ processor (Series 2)/14/13/12th Gen Intel^® Core™ i processor
• Support Intel^® AMT technology
• 2 x DDR5 SO-DIMM, up to 96GB
• 1 x HDMI^® 2.0 output, up to 4096 x2160@60Hz
• 3 x Intel^® LAN port
• 3 x USB 3.2 Gen 1x1, 2 x USB 2.0, 2 x DP 1.2
• Support PCIe 4.0 1x16/PCIe 4.0 2x8 expansion card/2 x 2.5” SSD swap bay
• TPM 2.0 for security
• 1 x M.2 Key B 3052/2242 for an optional 5G/LTE module
• 1 x M.2 Key E 2230 for an optional Wi-Fi module
• 1 x M.2 Key M 2280 for an optional SSD
• Support sDC +12V~24V power input

Ordering Information

NDiS B562-H (P/N: 10W00B56200X0)

Duro Edge computer, Intel^® Core™ processor (Series 2)/Intel^® Core™ i processor, Intel^® PCH H610E, 1 x HDMI^® 2.0, 2 x DP 1.2

NDiS B562-Q (P/N: 10W00B56203X0)

Duro Edge computer, Intel^® Core™ processor (Series 2)/Intel^® Core™ i processor, Intel^® PCH Q670E, 1 x HDMI^® 2.0, 2 x DP 1.2

NDiS B562-DIF-Q-R8 (P/N: 10W00B56201X0)

Duro Edge computer, Intel^® Core™ processor (Series 2)/Intel^® Core™ i processor, Intel^® PCH Q670E, 1 x HDMI^® 2.0, 2 x DP 1.2, w/ dual PCIe x8 expansion kit (DockInfinity-R8)

NDiS B562-DIF-F (P/N: 10W00B56204X0)

Duro Edge computer, Intel^® Core™ processor (Series 2)/Intel^® Core™ i processor, Intel^® PCH H610E, 1 x HDMI^® 2.0, 2 x DP 1.2, w/ one PCIe x16 expansion kit, fan and ventilation holes (DockInfinity-F-R16)

NDiS B562-DIF-D (P/N: 10W00B56205X0)

Duro Edge computer, Intel^® Core™ processor (Series 2)/Intel^® Core™ i processor, Intel^® PCH H610E, 1 x HDMI^® 2.0, 2 x DP 1.2, w/ dual SSD bay kit (DockInfinity-D)

DockInfinity-R8 (P/N: 10W00DOCK02X0)

Dual PCIe x8 expansion kit for Duro Edge computer

DockInfinity-F-R16 (P/N: 10W00DOCK00X0)

One PCIe x16 expansion kit with two-slot space for Duro Edge computer, w/ fan and ventilation holes

DockInfinity-D (P/N: 10W00DOCK03X0)

Dual SSD bay kit for Duro Edge computer
