NEXCOM Vehicle Terminals Fuel Telematics Adoption to Elevate Transport Efficiency

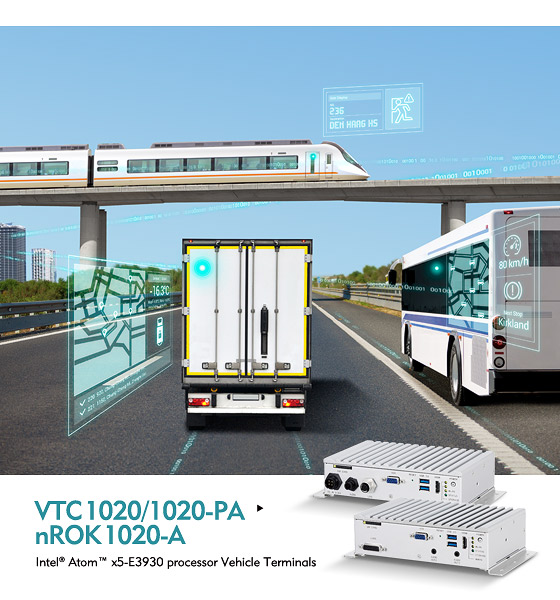

NEXCOM vehicle terminals fuel telematics adoption to achieve regulatory compliance and business targets. Powered by Intel^® Atom™ x5-E3930 processor, NEXCOM VTC 1020, VTC 1020-PA, and nROK 1020-A are equipped with vehicle data acquisition, GPS and wireless communication, and data processing capabilities. By bridging the gap between on-duty vehicles and central dispatchers, these vehicle terminals can help fleet, bus, and rail transport introduce telematics applications such as in-transit monitoring, usage-based insurance, preventive maintenance, and more.

Aimed at transport fleets, the VTC 1020 can facilitate daily operations for both drivers and dispatchers. Tucked in a truck, the VTC 1020 can gather GPS coordinates and engine speed to automate the tracking of drivers' records of duty status (RODS) and simplify fuel tax calculations. The VTC 1020 also enables fleet carriers to remotely monitor container locks and temperature in real time to enhance safe and sanitary transport of temperature-controlled cargoes and valuable goods. Moreover, the VTC 1020 can collect measurements of mileage, tire pressure, and G-force acceleration, among other vehicle telematics data, for real-time driver behavior analysis and to simplify insurance filing and maintenance schedule planning.

The VTC 1020-PA is designed to elevate passenger satisfaction and bus operations for public transport. To create a positive passenger experience, the vehicle terminal can drive three displays to show destination and passenger information inside and outside a bus, and support audio announcement for drivers to communicate with onboard and boarding passengers. In addition, the VTC 1020-PA enables dispatchers to talk to drivers in case of any incidents; track bus locations to reduce bus bunching, and monitor drivers' behavior to reinforce driving guidelines for safety and comfort. Also, the VTC 1020-PA can be used on school buses to ensure buses steer on course and provide parents estimated time of arrival for pick-up arrangement.

The EN50155-compliant nROK 1020-A addresses the special needs of rail transport. As a vehicle terminal, the nROK 1020-A can monitor passenger cars for doors being ajar, attempts to open emergency exits, and rising temperature. To allow actions to be taken, the nROK 1020-A can communicate the unusual conditions to an operator's console over a closed-loop train network or report to a control center over 3G/LTE networks. At the same time the nROK 1020-A can run passenger signage applications, showing passenger information on two displays.

Main Features

Model
	VTC 1020	VTC 1020-PA	nROK 1020-A
Application	Fleet Transport	Public Transport	Rail Transport
GPS	Built-in GPS receiver with optional dead reckoning function
Wireless COMM	Variety of WWAN/WLAN communication options
CAN Bus	Built-in CAN bus 2.0B. Optional OBD SAE J1939
COM	5x RS232 and 2x RS485
DIO	5x programmable DIO
Audio	1x audio-in, 1x audio-out	1x audio-in, 3x audio-out (switchable)	1x audio-in*, 1x audio-out*
Video Output	2 VGA, HDMI	3 VGA, HDMI, LVDS	2 VGA, HDMI
Smart Power Management	Ignition on/off delay and low voltage protection Wide range DC input from 9~36V
Certification	CE/FCC/E13 mark		EN50155 Class TX
ID Design	Compact and fanless

Ordering Information

VTC 1020 (P/N: 10V00102001X0)

Intel^® Atom™ x5-E3930 processor 1.8GHz with 4GB DDR3L, U-blox M8N GPS module, GPS antenna, CAN 2.0B, VGA, HDMI

VTC 1020-PA (P/N: 10V00102000X0)

Intel^® Atom™ x5-E3930 processor 1.8GHz with 4GB DDR3L, U-blox M8N GPS module, GPS antenna, CAN 2.0B, VGA, HDMI, LVDS and 1x audio-in, 3x audio-out

nROK 1020-A (P/N: 10V00102002X0)

Intel^® Atom™ x5-E3930 processor 1.8GHz with 4GB DDR3L, U-blox M8N GPS module, GPS antenna, CAN 2.0B, VGA, HDMI and EN50155 Class TX (24VDC w/o isolation)
