NEXCOM's Economical Single Board Computers Boast 4K Kiosk Applications

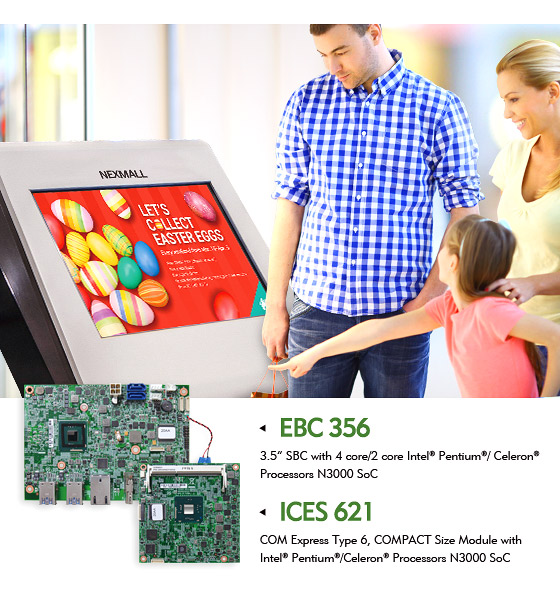

NEXCOM has released two 4K-ready single board computers—3.5-inch EBC 356 and type 6 COM Express ICES 621—to meet the growing demands for bigger-screen Kiosks and digital signage. The EBC 356 is designed for embedded applications while the ICES 621 targeting customers who tailor-made their carrier boards. Both have fast I/O interfaces including USB 3.0 and SATA 3.0, making them ideal for interactive kiosks at museums, airports, and shopping malls.

With 14nm Intel^® Pentium^® and Celeron^® processor N3000 product family support, ICES 621 have graphics capabilities required for kiosks and display to play superb 4k video. The type 6 COM Express has dual DP/HDMI and one VGA output. Chip innovations reflect enhanced power efficiency, thermal performance, smaller size, and price, make it a good fit for projectors and handheld medical devices as well.

With the same Intel^® platform, EBC 356 not only delivers crisp 4k performance but also great flexibility with triple HDMI outputs, making it an outstanding multimedia solution. In addition to fast I/O (USB 3.0 and SATA 3.0), the single board computer equips an M.2 slot for an optional 3G/4G or SSD storage. Wireless connection simplifies local installation, maintenance, and multimedia upgrade while M.2 SSD delivers a reliable storage choice over spinning disks.

EBC 356 Main Features

• Intel^® Pentium^® Processor N3700 or Celeron^® Processor N3150
• Support two DRAM slots up to 8GB
• Support two SATA HDD (SATA3.0) and one SATA DOM
• Support three independent HDMI outputs (2x4K, 1x2k)
• One Mini PCIe for M.2 SSD (key B) or 3G/4G module

ICES 621 Main Features

• Intel^® Pentium^® Processor N3700 or Celeron^® Processor N3150
• 2 channel DDR3L without ECC/SO-DIMMs 1333/1600MHz up to 8GB
• Support three independent displays with DisplayPort, HDMI, and VGA outputs
• 4 x PCIe x 1, 4 x USB3.0, 8 x USB2.0, 2 x SATA3.0 and GbE

Ordering Information

EBC 356 (P/N: 10E00035600X0)

ICES 621 (P/N: 10K00062100X0)
