X104

3.5” Embedded Computing Board with Intel® Processor N-series & Intel® Core™ Processor N-series
  • Main Feature
  • Intel® processor N-series & Intel® Core™ processor N-series
  • 1 x DDR4 SO-DIMM, up to 16GB
  • Support 2 x HDMI® 1.4 output 4K@30Hz
  • 1 x eDP 1920x1080@60Hz (optional: LVDS selected by jumper)
  • TPM 2.0 design for security technology
  • Richful I/O connectivity: 2 x 2.5GbE LAN, 4 x USB 3.2 Gen 1
  • 1 x M.2 Key M 2242 for supporting PCIe & SATA storage device
  • 1 x Mini PCIe slot supports Wi-Fi and LTE modules
  • Support power input 12V DC
Add to Inquiry
Datasheet(PDF)

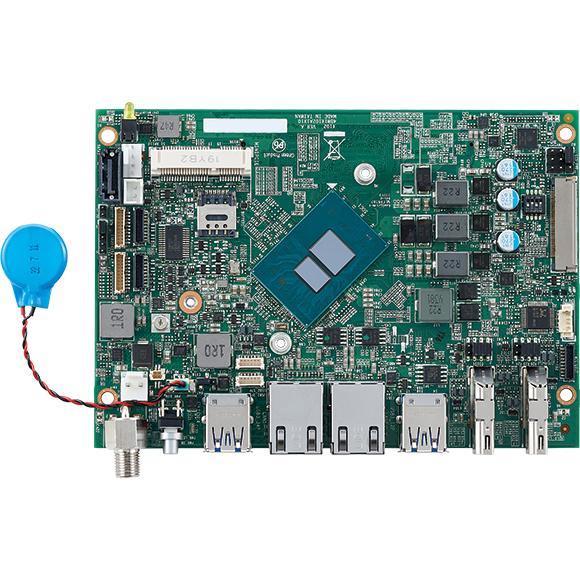

The X104 is a 3.5” SBC powered by Intel® Processor N150 and Intel® Core™ Processor N355. It offers enhanced computing performance, low power consumption, and a rich set of integrated IoT features.



The board supports dual HDMI® 1.4 display outputs, dual 2.5GbE LAN ports, four USB 3.2 Gen 1 ports, one RS-232/422/485 port, and an M.2 Key M 2242 storage slot compatible with both PCIe and SATA formats. Additionally, the Mini PCIe slot supports LTE and Wi-Fi 6/6E/7 modules.



The X104 series is an ideal solution for a variety of applications, including IoT gateways, self-service kiosks, endless aisles, QSRs, drive-thru kiosks, bus stops, digital transit information signs, intelligent poles/lighting systems, and information display systems such as PIDS for smart city deployments.
