VIP 1000
In-Vehicle Dual HDMI Extender Over IP- Main Feature
- Full HD HDMI (1.4b) extender over IP
- 9-36VDC input voltage with ignition control
- E mark for in-vehicle application
- Plug and Play
- 2 x Full HD HDMI output
- Unicast, daisy chain and multicast modes support
- Selectable video source
- Up to 100 meter distance
Add to Inquiry
Datasheet(PDF)
VIP 1000-T (P/N: 10V30100000X0)
Full HD HDMI extender over IP (Transmitter)

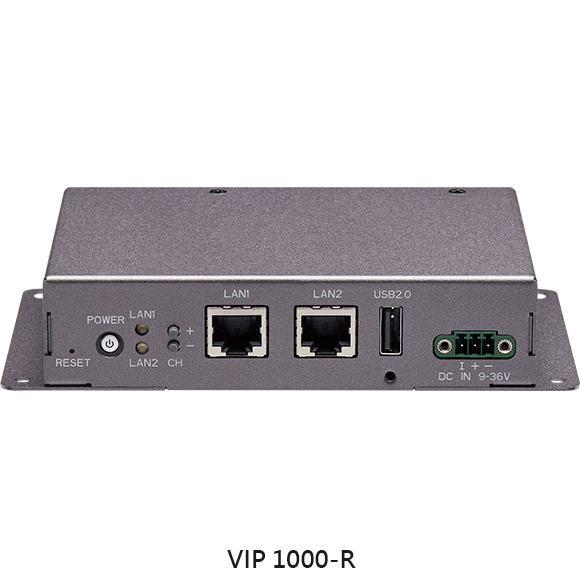

VIP 1000-R (P/N: 10V30100001X0)
Full HD dual HDMI extender over IP (Receiver)

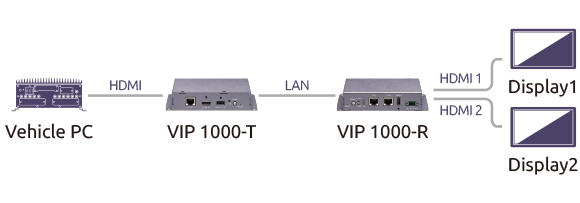

| Unicast Mode |
|---|
 |

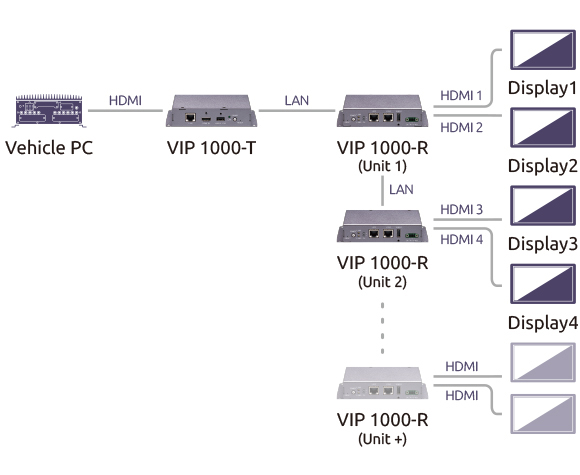

| Daisy Chain Mode |
 |

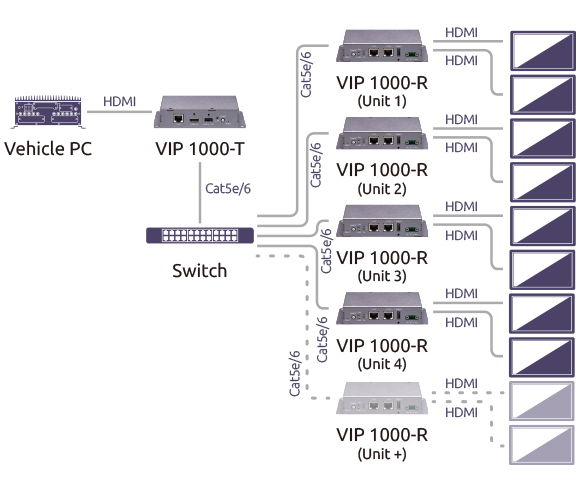

| Multicast Mode 1 |
 |

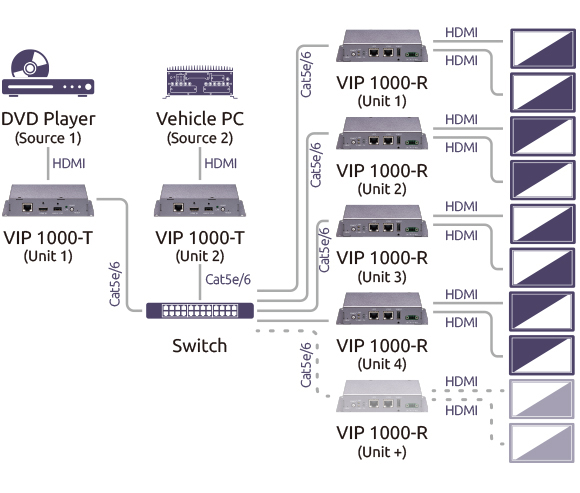

| Multicast Mode 2 |
 |
