APPD 1700-1

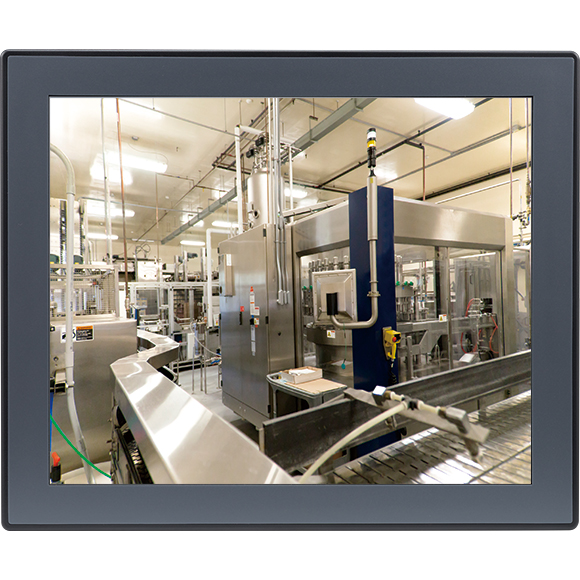

17" IP65 Industrial 4:3 SXGA LCD Flush Touch Monitor
  • Main Feature
  • IP65 compliant plastic front bezel with flush panel by 5-wire touch screen
  • Triple display input interface: analog VGA/DVI-D/DisplayPort
  • Shares identical appearance with APPC series
  • Dual touch screen interface: RS232 and USB (optional)
  • Ultra slim in depth
  • Multiple mounting way for easy integration
Add to Inquiry
Datasheet(PDF)
Panel LCD size: 17", 4:3 Resolution: SXGA 1280 x 1024 Luminance: 350cd/m2 Contrast ratio: 800 LCD color: 16.7M Viewing angle: 60 (U), 80 (D), 80 (L), 80 (R) Backlight: LED
Touch Screen 5-Wire resistive (flush panel type) Light transmission: 81% Interface: USB and RS232 (optional)
Rear I/O Touch interface port: RS232 (1 x DB9)/USB type A Video port: VGA (1 x DB15)/DVI-D (1 x DVI-I connector)/DisplayPort DC power input connector: 3-pin Phoenix terminal blocks
OSD Function OSD keypad
Mechanical & Environment Color: Pantone black and black silver chassis box IP protection: IP65 front Mounting: panel/wall/stand/VESA 100mm x 100mm Power
- Power input: 24VDC ±20%
- Optional 24V, 60W AC/DC power adapter w/o power cord
Vibration
- IEC 68 2-64
- 2Grms @ sine, 5~500Hz, 1hr/axis (operating)
- 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (non operating)
Shock
- IEC 68 2-27
- 20G@wall mount, half sine, 11ms
- Operating temperature: -20°C~60°C
- Storage temperature: -20°C~75°C
Operating humidity: 10%~90% relative humidity, non condensing limits to be at 90% RH at max 50°C Dimension: 410.42 x 340.31 x 55.9mm Weight: 4.8 kg
Certifications CE approval FCC Class B
