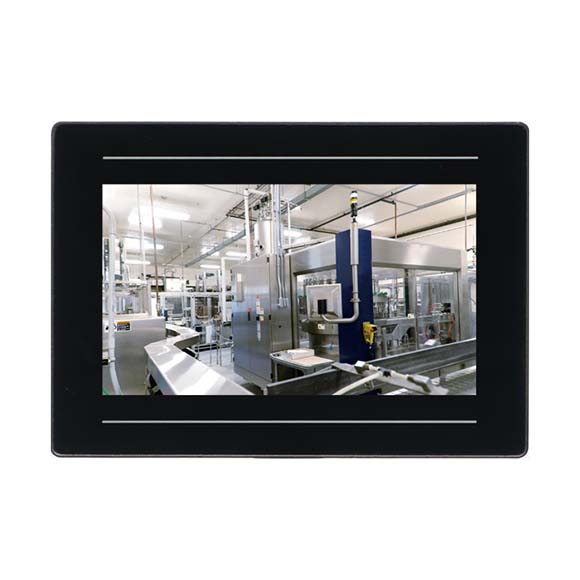

APPC 0760-A02
7” LCD 16:9 Flush Panel PC with Intel® Processor N97/ x7213RE- Main Feature
- 16:9 7” WSVGA fanless LED panel computer
- Intel® Processor N97 Quad Core 2.0GHz or x7213RE Dual core 2.0GHz
- 10 points P-Cap multi-touch with zero bezel flush front design
- 1 x DDR5 SO-DIMM, non ECC
- Dual Intel® 2.5GbE LAN ports, 2 x USB 3.2, 1 x Line out
- 1 x RS-232/422/485 with auto flow control, 3 x M.2
- IP65 compliant front panel
- Mounting support: panel/wall/stand/VESA 75mm x 75mm
- DC power input 24V DC
The new 7-inch WSVGA fanless panel PC APPC 0760-A02, featuring an industrial motherboard, is designed for versatile industrial applications. APPC 0760-A02 supports 1024 x 600 (WSVGA) resolution and 500 cd/m2 brightness. It’s front panel, with a zero bezel flush front design, complies with the IP65 standard, making it well-suited for industrial environments.
APPC 0760-A02 includes dual 2.5 Gigabit Ethernet connectors, two of M.2 slots support multiple networks, including LAN, WLAN, Wi-Fi and WWAN (5G), as well as various storage options. Additionally, APPC 0760-A02 can also connects to a second display via HDMI. One adjustable RS-232/422/485 port is also available. APPC 0760-A02 is an ideal choice for general industrial equipment integration.
