APPC210 C21-01

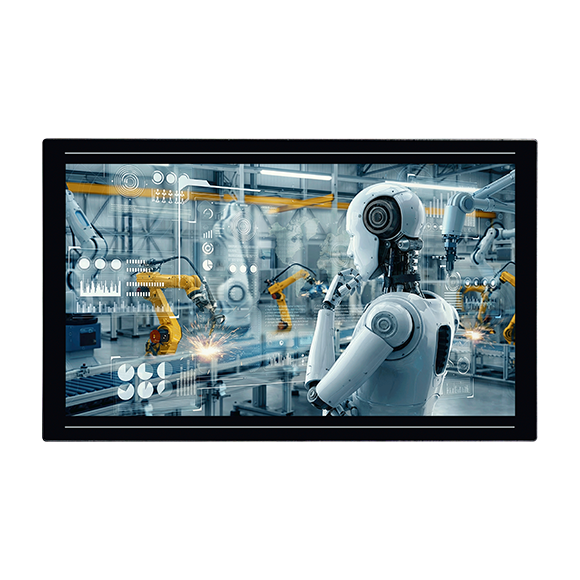

21.5” FHD Multiple-Purpose Panel PC with Intel® Core Ultra5 125U, Multi-Touch Screen, 8GB DDR5, 1 x COM, 4 x USB 3.2, 4 x GbE LAN
  • Main Feature
  • 16:9 21.5” FHD fanless panel computer with narrow-bezel display
  • Intel® Core™ Ultra 5 125U, 1.3 GHz, 12C/14T, TDP 15W
  • 10-point P-Cap multi-touch with IP65-rated front panel
  • 8GB DDR5 5600MHz installed, optional support up to 32GB non-ECC
  • Additional Display: 1 x HDMI® 1.4
  • 4 x Intel® GbE LAN ports, 4 x USB 3.2 Gen1
  • 1 x RS-232/485, 1 x Mini PCIe, 2 x M.2 (Key M & Key E)
  • Mounting support: VESA 100 / Wall Mount
  • DC power input 12V/19V/24V DC
Add to Inquiry
Datasheet(PDF)
Processor Intel® Core™ Ultra processors (Series 1)
- Ultra 5 125U (1.3 GHz, 12C/14T, TDP 15W)
Panel LCD size: 21.5”, 16:9 Resolution: FHD 1920x1080 Brightness: Up to 500nits Contrast ratio: 1000:1 LCD Color: 16.7M Viewing angle: 178(H)/178(V) Touch Type: Ten-point projective capacitive touch screen Light transmission: 85% Surface Hardness: 7H Interface: USB
Memory 1 x DDR5 5600MHz SO-DIMM, non-ECC, default 8GB, up to 32GB
Storage 1 x M.2 Key M 2280 SSD (PCIe 4.0 x4)
I/O Interface Rear 4 x USB 3.2 Gen1 4 x GbE RJ45 port, Intel® l210 1 x HDMI®1.4, up to 3840x2160@30Hz 1 x COM port (DB9), supports RS-232 (default)/485), signal select via jumper 1 x Power button with power LED 1 x DC12/19/24V power input via 2x2 pin terminal block
Expansion Slot 1 x M.2 Key E, 2230 (PCIe x1 + USB 2.0)
- Support Wi-Fi/BT module 1 x Mini PCIe (PCIe x1 + USB 2.0)
System Capabilities TPM 2.0
Antenna Hole 4 x Antenna for wireless communication expansion
Power Supply DC 12V/19V/24V input
Mechanical Dimensions: 476.06mm (W) x 321.2mm(D) x 70.6mm(H) Cutout: 527.4mm x 270.3mm Color: Pantone 400C black silver Mounting: VESA 100/Wall Mount
Environment Vibration:
- 2G@sine, 5-500Hz, 1hr/axis (M.2 operating), IEC 60068-2-6
- 2Grms@random condition, 5-500Hz, 1hr/axis (non-operating), IEC 60068-2-64 Shock:
- 20G@wall mount, half sine, 11ms, IEC 60068-2-27 Temperature:
- Operating temperature: 0°C~50°C (ambient with air flow)58
- Storage temperature: -20°C~75°C Operating humidity: Up to 90%, non-condensing
Certifications CE approval (EN 55032, EN 55035) FCC Class A
Operating System Windows 11 IoT Windows 10 IoT, 64bit Linux Ubuntu
