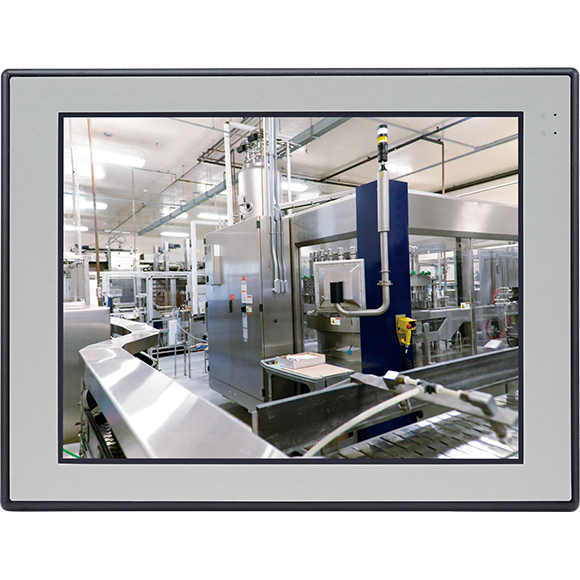

APPC 1250T

12.1“ TFT XGA 4:3 Flush Panel PC with Intel® Celeron® J3455 1.50GHz Touch Screen, 4GB DDR3L, 4 x USB, 3 x COM
  • Main Feature
  • 4:3 12.1” XGA fanless LED panel computer
  • Intel® Celeron® J3455 processors, low consumption CPU
  • Flush panel by 5-wire touch screen
  • 1 x DDR3L 1866MHz sockets, up to 8GB (non-ECC)
  • Dual Intel® GbE LAN ports/DP/Dual USB 3.0 & USB 2.0
  • 1 x mini-PCIe sockets, 1 x M.2, 1 x RS232/422/485
  • DDR3L 4GB/2.5” HDD bracket
  • IP65 compliant front panel
  • Mounting support: panel/wall/stand/VESA 100mm x 100mm
  • DC power input 24VDC
Add to Inquiry
Datasheet(PDF)
Panel LCD size: 12.1”, 4:3 Resolution: XGA 1024 x 768 Luminance: 500cd/m2 Contrast ratio: 700 LCD color: 16.7M Viewing angle: 70(U), 70(D), 80(L), 80(R) Backlight: LED
Touch Screen 5-wire resistive (flush panel type) Light transmission: 80% Interface: USB
System CPU : onboard Intel® Celeron® J3455 Quad Core processor, 1.50GHz BIOS: AMI BIOS System memory: 1 x 204-pin DDR3L SO DIMM socket, 4GB DDR3L(default), support up to 8GB DDR3L 1866, non-ECC and un-buffered Storage device:
- 1 x Internal M.2 2242
- 1 x Hard drive bay: optional 1 x 2.5” SATA HDD
Watchdog timer: Watchdog timeout can be programmable by software from 1 second to 255 seconds and from 1 minute to 255 minutes (tolerance 15% under room temperature 25°C) Expansion: 1 x mini-PCIe sockets (support optional Wi-Fi module) Front LED indicator to show operating status
Rear I/O Ethernet: 2 x RJ45 Display: 2 x DP1.2 USB: 2 x USB 2.0, 2 x USB 3.0 LED indicator: power/HDD/GPIO programmable LED Power button COM #3: RS232/422/485 COM #1&2: RS232
Ethernet LAN chip: dual Intel® I210 IT Gigabit LAN Ethernet interface: 10/100/1000 based-Tx Ethernet compatible
Mechanical & Environment Color: Pantone black\RAL 15 00 front bezel w/ Pantone 400C\RAL 090 80 10 metal style membrane and black silver PC box IP protection: IP65 front Mounting: panel/wall/stand/VESA 100mm x 100mm Power:
- Power input: 24 VDC
- Power adapter: optional AC to DC power adapter (+24V, 60W)
Vibration:
- IEC 68 2-64 (w/ HDD)
- 1Grms @ sine, 5~500Hz, 1hr/axis (HDD operating)
- 2Grms @ sine, 5~500Hz, 1hr/axis (M.2/SSD operating)
- 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (non-operating)
Shock:
- IEC 68 2-27
- HDD: 20G @ wall mount, half sine, 11ms
Temperature:
- Operating temperature: 0°C to 50°C
- Storage temperature: -20°C to 75°C
Operating humidity: 10%~90% relative humidity, non-condensing (limits to be at 90% RH at max 50°C) Dimension: 317 x 243 x 82.5 mm Weight: 3.5kg
Certifications CE approval FCC Class A
OS Support Lists Windows 10 64-bit
