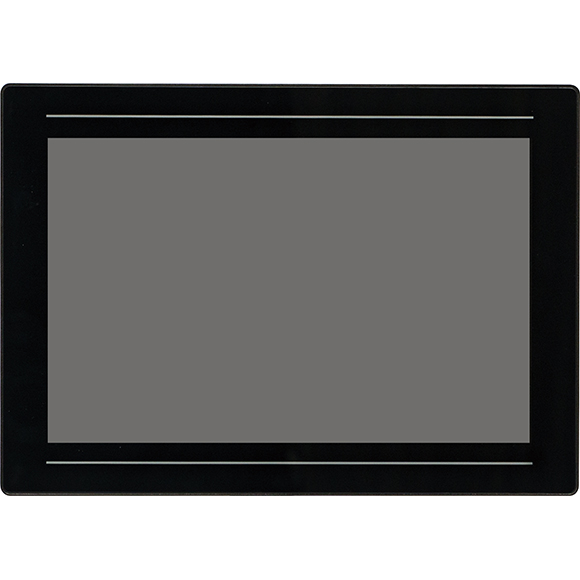

APPC 1060-A02

10.1” LCD 16:9 Flush Panel PC with Intel® Processor N97/ x7213RE
  • Main Feature
  • 16:9 10.1” WXGA fanless LED panel computer
  • Intel® Processor N97 Quad Core 2.0GHz or x7213RE Dual core 2.0GHz
  • 10 points P-Cap multi-touch with zero bezel flush front design
  • 1 x DDR5 SO-DIMM, non ECC
  • Dual Intel® 2.5GbE LAN ports, 2 x USB 3.2, 1 x Line out
  • 1 x RS-232/422/485 with auto flow control, 3 x M.2
  • IP65 compliant front panel
  • Mounting support: panel/wall/stand/VESA 75mm x 75mm
  • DC power input 24V DC
Add to Inquiry
Datasheet(PDF)
Panel LCD size: 10.1”, 16:9 Resolution: : WXGA 1280 x 800 Luminance: 500cd/m² Contrast ratio: 1000:1 LCD Color: 16.7M Viewing angle: 80 (U), 80 (D), 80 (L), 80 (R) Backlight: LED
Touch Ten points P-Cap (projected capacitive touch) Touch light transmission: 85% Anti-scratch surface: 7H hardness Touch interface: USB
Processor Intel® processor N97 Intel® Atom™ x7213RE
Memory 1 x DDR5 SO-DIMM, non-ECC, up to 32GB
Storage 1 x M.2 Key B 2242 SSD (SATA 3.0)
System Capabilities AMI BIOS TPM 2.0
I/O Interface Rear Power button 24V DC input with 3 pins terminal block 2 x USB 3.2, Type-A 1 x HDMI®, up to 4K@30Hz 1 x USB 3.2, Type-C (5V/900mA) 1 x USB 3.2, Type-C
- Support Alt mode (DP1.4 HBR3) & PD,
- Support PD power output: 5V/3A, 9V/3A, 15V/3A, and 20V/3A(depends on Terminal Block DC input)
- 12V DC input: Support 40W output
- 24V DC input: Support 60W output
- PD Power input: 20V/3A 1 x COM port (DB9), supports RS-232/422/485 auto flow control 1 x Line out 2 x 2.5GbE RJ45 port, Intel® I226-IT
- Support WoL and PXE 1 x Line out
- HD audio codec: REALTEK ALC888S-VD
I/O Interface Internal 1 x Key B M.2 2230/3042/3052 (PCIe x1, USB 3.2/ 2.0) for 5G/LTE 1 x Key B M.2 2242 for SATA SSD 1 x Key E M.2 2230/3052 for Wi-Fi 1 x microSD card slot 1 x nano-SIM card slot onboard
Mechanical Color: Pantone Black Silver IP protection: IP65 front Mounting: panel/wall/stand/VESA 75mm x 75mm Dimension: 259.5mm x 184mm x 62.2mm Weight: 2.5kg
Power Supply DC 24V ± 20% input
- AT and ATX (default) power mode
- Optional AC to DC power adapter (24V DC, 60W)
Environment Vibration:
- 2G@sine, 5~500Hz, 1hr/axis, IEC 60068-2-64
- 2Grms@random condition, 5~500Hz, 0.5hr/axis, IEC 60068-2-64 Shock:
- 20G@wall mount, half sine, 11ms, IEC 60068-2-27 Temperature:
- Operating temperature: -10°C~60° (Ambient with air flow)
- Storage temperature: -20°C~75°C Operating humidity: 10% ~90%, non-condensing
- limits to be at 90% RH at max 50°C
Certifications CE approval (EN 55032, EN 55035) FCC Class A
Operating System Windows 11 Windows 10, 64bit Linux
