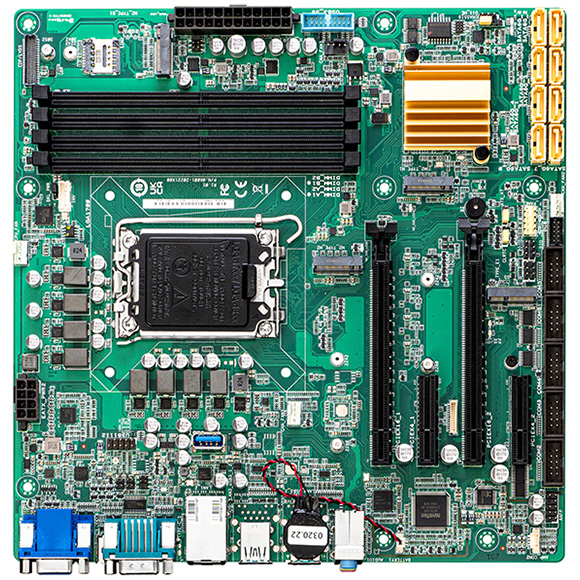

NEX 818

Micro ATX Supports 12/13 Gen Intel® Core™ LGA1700 Socket Processor
  • Main Feature
  • Intel® LGA1700 socket supports 12/13th Gen Intel® Core™ processor (max 125W)
  • Intel® Q670E Express chipset
  • 4 x DDR5 4000MHz up to 128GB
  • 1 x Intel® i210-AT GbE, 1 x Intel® i219-LM GbE
  • 2 x M.2 Key M slot, 1 x M.2 Key B slot + 1 x Micro SIM slot 1 x M.2 Key E slot
  • 8 x SATA 3.0 (6Gb/s), support Raid 0/1/5/10
  • 1 x VGA, 1 x HDMI, 1 x DP, 1 x LVDS/eDP
  • 1 x RS232/422/485, 5 x RS232, 4 x USB 3.2 (Gen.2), 3 x USB 3.2 (Gen 1), 2 x USB 2.0
  • 2 x PCIe x16, 2 x PCIe x4 slots
  • 1 x CPU FAN, 3 x system FAN
  • 24 + 8-pin ATX power input
  • Micro ATX form factor (244mm x 244mm)
