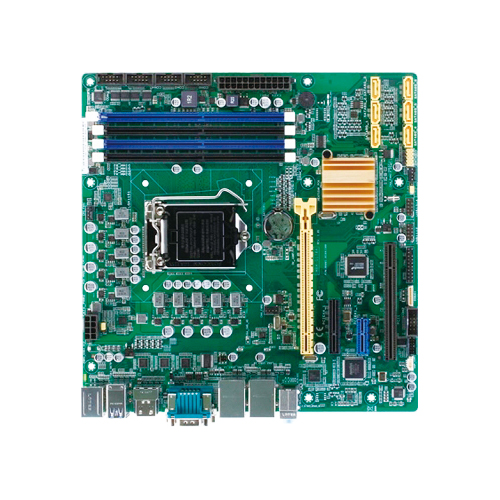

NEX 812

Micro-ATX 6th/7th Generation (Sky Lake-S), Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processer
  • Main Feature
  • 7th/6th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® 14nm LGA1151 socket processor, PCH Q170
  • 4 x U-DIMM DDR4 with non-ECC SO-DIMM 2133/1867MHz up to 64GB
  • Support multi display DVI-I+HDMI, HDMI+HDMI
  • 2 x Intel® GbE LAN ports, 10 x USB 3.0, 4 x USB 2.0, 5 x RS232, 1x RS232/485/422, 6 x SATA 3.0, HD audio
  • 1 x PCIe x16, 1 x PCie x4, 1 x PCIe x1, 1 x PCI
  • 8 bit DIO, TPM (optional)
Add to Inquiry
Datasheet(PDF)
CPU/Chipset 6th/7th Generation Intel® Core™ LGA1151 processor Intel® Q170 express chipset
Main Memory 4 x DDR4 U-DIMM memory socket with non-ECC support, up to 64 GB 2133/1876MHz
BIOS AMI (UEFI)
Display Integrated Intel® graphics engine
- 1 x DVI-I connector (resolution up to 1920 x 1080@60Hz)
- VGA (resolution up to 1920 x 1080@60Hz) 1 x HDMI 1.4 connector (resolution up to 4096 x 2304 x 30MHz)
System 1 x PS/2 connector, 10 x USB 3.0, 4 x USB 2.0 5 x RS232, 1 x RS232/485/422 & supports 5/12V on RI pin (by COM1) Realtek ALC897 5.1 channel HDA codec, Int SPKR 1 x Front panel header, 8 bit digital I/O (In/Out programmable), WDT Supports onboard TPM (optional) 3 x Smart fan connector
Storage 6 x SATA 3.0 (6.0Gb/s) ports, support RAID 0/1/5/10
Expansion Slot Π1 x PCIe 3.0/2.0 x16, 1 x PCIe 3.0/2.0 x4 slot (open edge), 1 x PCIe 3.0/2.0 x1 slot (open edge), 1 x PCI
Rear I/O 1 x PS2/2 combo (mouse and keyboard supported) 10 x USB 3.0, 2 x USB 2.0 1 x DVI-I, 2 x HDMI 1 x COM (by COM1) 2 x RJ45:
- LAN 1: Intel® PHY I219-LM Gb LAN (supports iAMT 11.0)
- LAN 2: Intel® I210-AT Gb LAN 1 x HD audio connector (1 x Line-out + MIC + Line-in 3.5mm Jack)
Internal I/O 4 x USB 2.0 5 x RS232 HD audio:
- 1 x Audio pin header (speaker header x 1 [Line-out])
Power Requirement 1 x 24-pin ATX connect/1 x 8-pin (2 x 4) ATX 12V power connector
Dimensions Micro-ATX Form factor, 9.6” x 9.6” (244mm x 244mm)
Environment Board level operation temperature: -0°C to 60°C Storage temperature: -40˚C to 85˚C Relative humidity:
- 10% to 95% (operating, non-condensing)
- 5% to 95% (non-operating, non-condensing)
Certifications Meet CE/FCC Class A
