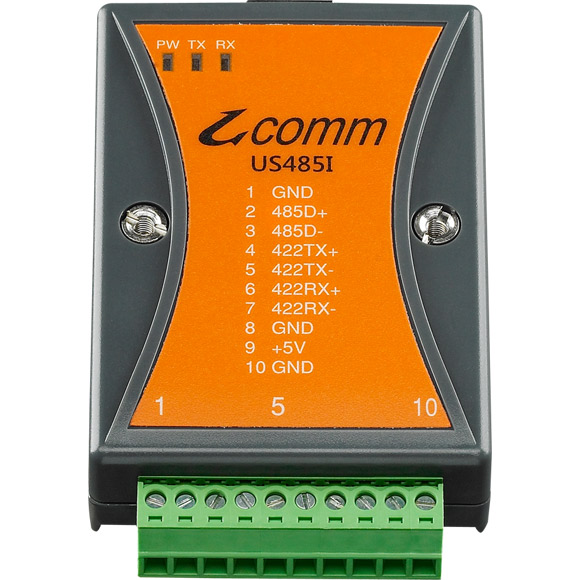

USB to Single ports RS485/RS422 with 2.5KV Protection
  • Main Feature
  • Full Compliance with USB1.1 and USB2.0
  • Support Single RS485/RS422 communication port
  • Support auto data flow control on RS485
  • Support RS422 mode via switch setting
  • Transmission speed up to 115.2 kbps
  • USB connection without additional power supply
  • 2.5KV Protection and high ESD +/- 15KV HBM on transceiver
Add to Inquiry
Specifications One USB type A connector 1x 10-pin screw terminal (14~22 AWG cable is recommended) Communications:
Data Bits: 5, 6, 7, 8
Error Detection: Parity Error, Frame Error, Serial Break
Max Distance: 4000 ft (1.2KM)
Parity bits: Odd, Even and None
Stop Bits: 1, 1.5 and 2
Transmission Speed: 50 bps to 115.2 kbps RS485 Signals: 2- wire (DATA+ & DATA-) RS422 Signals: 4-wire (TX+, TX-, RX+, RX-) Support RS422 mode via switch setting Driver support: Windows 98/2000/ME/XP Dimension: 72mm (L) x 52mm (W) x 25mm (H) Operating temperature: -40 ~ 85 degree C Storage Temperature: -55 to 125 degree C
