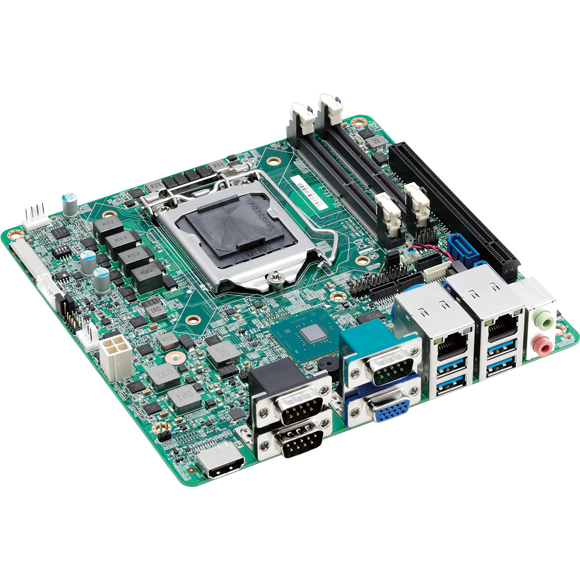

MiniITX – X302
Mini-ITX Embedded Computing Board Powered by 8th/9th Intel® Core ™ Processor- Main Feature
- Support 8th/9th Intel® Core™ socket type processor
- Dual channel DDR4 SO-DIMM, 32GB max
- 1 x VGA, 1 x HDMI 1.4 (support 4K display output) and 1 x LVDS
- Dual Intel® LAN ports
- 6 x COM port, 10 x USB, Mic-in/Line-out/Speaker-out
- Optional TPM 2.0 for security advantage
- Support Intel® AMT technology
- Onboard M.2 Key B/E for storage & wireless connection
The X302 is an industrial Mini-ITX embedded computing board powered by Intel® 8th /9th Core™ i7/i5/i3 and Celeron® processors (formerly Coffee Lake) with Intel® Q370/H310 express chipset. In addition to the great computing performance, the X302 features with outstanding GPU performance based on Intel® UHD Graphics 630 engine. The X302 comes with rich I/O connectivity including 6 x COM ports, 10 x USB 3.0, 2 x LANs, 1 x VGA and 1 x HDMI 1.4 for 4K display output. The internal LVDS connector can be connected with panel for kiosk use. It also comes in great expansion possibilities, including two M.2 slot for support SSD storage, Wi-Fi or LTE connectivity. The X302 is perfect to be embedded in industrial testing equipment or measurement machine applications which need rich I/O connectivity in high demand for higher computing and graphic performance.
