MiniITX – X300
Mini-ITX, 8th Generation Intel® Core™ i7/ i5/ i3 Process Family with Q370/H310 HDMI, LVDS, M.2M, M.2E, 2 x GbE, 10 x USB, 3 x COM, 12V DC- Main Feature
- Support socket LGA1151 for 8th generation Intel® Core™ i7/i5/ i3 (codenamed Coffeelake) processors
- Intel® Q370/H310 chipset
- 2 x 260-pin SO-DIMM DDR4 up to 32GB
- Triple display: HDMI/ LVDS
- 2 x GbE with Intel® I219-LM and i211-AT
- 1 x M.2 2230 Key E
- 1 x SATA 3.0 (Q370)
- 3 x COM, 10 x USB, 1 x Audio
- 1 x PCIe x16 (Q370) or 1 x LVDS (H310)

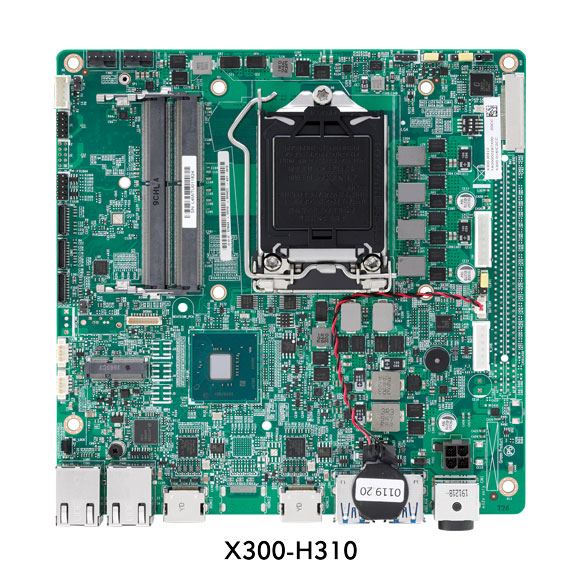

X300-Q370/H310 is a Mini-ITX board with 8th generation Intel® Core™ i7/i5/i3 processors (codenamed Coffeelake) which integrated Intel® UHD Graphics 630. X300-Q370/H310 supports multi-displays by HDMI (4K @ 60Hz) and LVDS (dual channel 24-bit up to 1920 x 1200 @ 60Hz). With dual DDR4 SO-DIMM channel, the maximum memory supports up to 32GB.
X300 embedded Intel® Q370 as default provides three HDMI, four serial ports, four USB 3.0 ports, six USB 2.0 ports, two Gigabit Ethernet LAN port, one PCIe x16 slot and one M.2 2230 Key E with Wi-Fi interface. The power input is 12V DC. With optional Intel® H310 chipset, X300 switches PCIe x16 to LVDS for multifunctional usage. X300-Q370/H310 features versatile displays, riches I/O support for multimedia as well as critical mission of industrial embedded applications, such as Kiosk, digital signage, gamming, gateway...etc.
