3.5” – X200

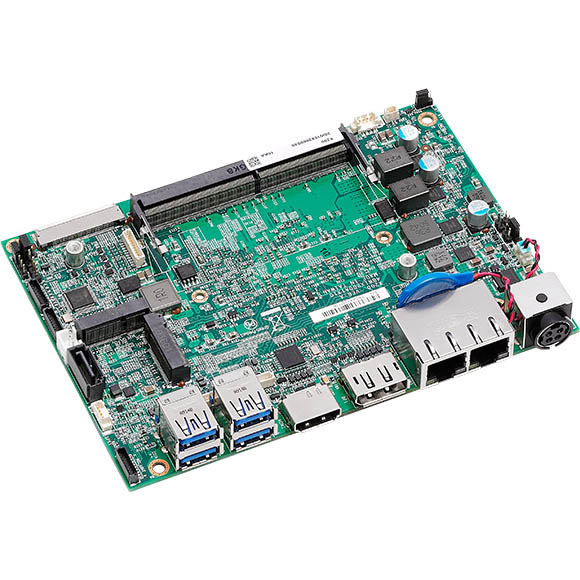

3.5” Embedded Computing Board Powered by 11th Generation Intel® Core™ Processor
  • Main Feature
  • 11th Generation Intel® Core™ processor SoC
  • 3.5” embedded form factor
  • Dual 4K @ 60Hz display output, DP++, HDMI 2.0
  • Support 4K @ 60Hz eDP display output
  • Dual LAN ports and USB 3.0 ports for easy connection
  • Onboard M.2 2280 Key M (PCIe x4) for storage modules
  • Onboard M.2 2230 Key E for optional Wi-Fi modules
  • Support extended temperature and outdoor application
Add to Inquiry
Datasheet(PDF)

The X200 is a 3.5” SBC embedded board, powered by multi-core SoC Intel® Core™ processor. This series of 3.5” board is aimed at embedded applications. It supports a maximum memory of 32GB DDR4 SDRAM, offers triple display outputs of 4K HDMI, DP++, and eDP to provide the flexibility of supporting a range of peripherals. The X200 is a great solution featuring a low power consumption and small footprint for multimedia applications.
