X204

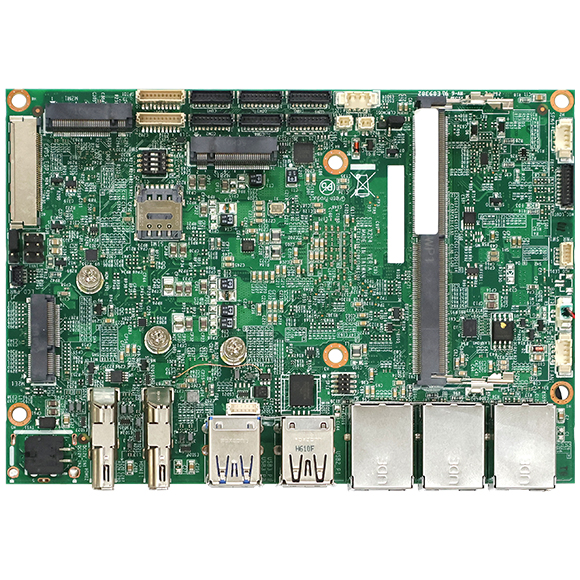

3.5” Embedded Computing Board powered by Intel® Core™ Processor (Series 3)
  • Main Feature
  • Intel® Core™ processor (Series 3)
  • Support Intel® ISM technology
  • 1 x DDR5 6400 SO-DIMM, up to 64GB
  • 2 x HDMI® 1.4 output, up to 4096x2160@30Hz
  • 3 x Intel® LAN port
  • 2 x USB 3.2, 2 x USB 2.0
  • TPM 2.0 for security
  • 1 x M.2 Key B 3052/2242 for an optional 5G/LTE module
  • 1 x M.2 Key E 2230 for an optional Wi-Fi module
  • 1 x M.2 Key M 2242 for an optional SSD
  • Support DC +12V power input
Add to Inquiry
Datasheet(PDF)

X204-350 (P/N: 10W10X20400X0)
Embedded board with Intel® Core™ 7 processor 350

X204-320 (P/N: 10W10X20401X0)
Embedded board with Intel® Core™ 5 processor 320

X204-304 (P/N: 10W10X20402X0)
Embedded board with Intel® Core™ 3 processor 304
