Neu-XE105-N50-12U

Edge Computing System Powered by Intel® Processor N50
  • Main Feature
  • Intel® processor N50
  • Slim compact chassis and fanless design
  • 1 x DDR5 4800 SO-DIMM, up to 16GB
  • Support 1 x HDMI® 1.4 output 4K@30Hz
  • TPM 2.0 design for security
  • Rich I/O connectivity: 1 x LAN, 4 x USB 3.2, 8 x USB 2.0, 3 x COM, 1 x GPIO
  • 1 x M.2 Key M 2242, supports a SATA storage device
  • 1 x M.2 Key E 2230, supports a Wi-Fi module
  • DC 12V power input
Add to Inquiry
Datasheet(PDF)
Processor Intel® processor N50, TDP 6W
Integrated Graphics Intel® UHD Graphics
Memory 1 x DDR5 4800 SO-DIMM, non-ECC, unbuffered, up to 16GB

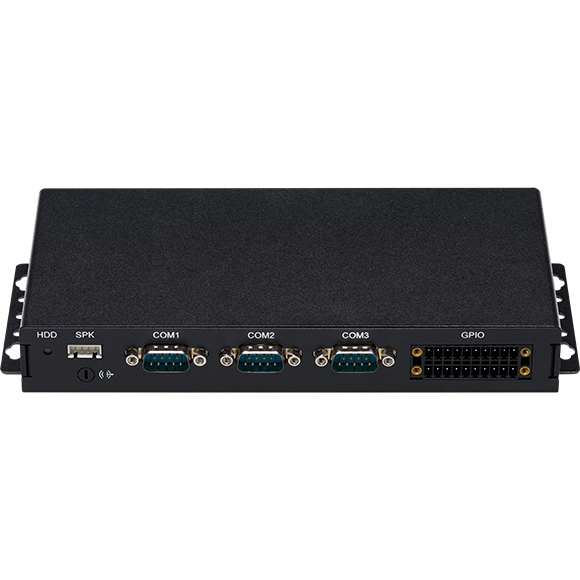

I/O Interface Front 2 x COM port (DB9), supports RS-232 1 x COM port (DB9), supports RS-485 1 x 20-pin header for GPIO (16-bit programmable) 1 x 4-pin header for speaker out (with 20W/4Ω amplifier) 1 x Line out (reserved) 1 x Storage active LED
I/O Interface Rear 1 x 2.5GbE RJ45 port 1 x HDMI® 1.4, up to 3840x2160@30Hz 4 x USB 3.2, Type-A 8 x USB 2.0, Type-A 1 x Power button with LED 1 x 2-pin header for DC 12V power input
I/O Interface Side 2 x Antenna hole
I/O Interface Internal 1 x 9-pin header for mic in and line out
Expansion Slot 1 x M.2 Key E 2230, supports a Wi-Fi module
Storage 1 x M.2 Key M 2242 SSD (SATA 3.0)
Power Supply DC 12V input
Environment Temperature:
- Ambient with air flow: 0°C~45°C
- Storage temperature: -20°C~80°C Relative Humidity: 95% (non-condensing) Shock protection: 50G peak acceleration, 11ms according to IEC 60068-2-27 Vibration protection
- Random: 2Grms@5Hz~500Hz, IEC 60068-2-64
- Sinusoidal: 2G@5Hz~500Hz, IEC 60068-2-6
Mechanical Dimensions: 220.0mm (W) x 106.9mm (D) x 29.6mm (H) Net weight: 0.3kg
Package Information Dimensions: 558mm (W) x 388mm (D) x 207mm (H) Gross weight: 6.3kg (10 units per carton)
Certifications CE (EN 55035 + EN 55032) FCC Class A (EMI part 15B) LVD
Operating System Windows 11 Windows 10, 64-bit Linux
