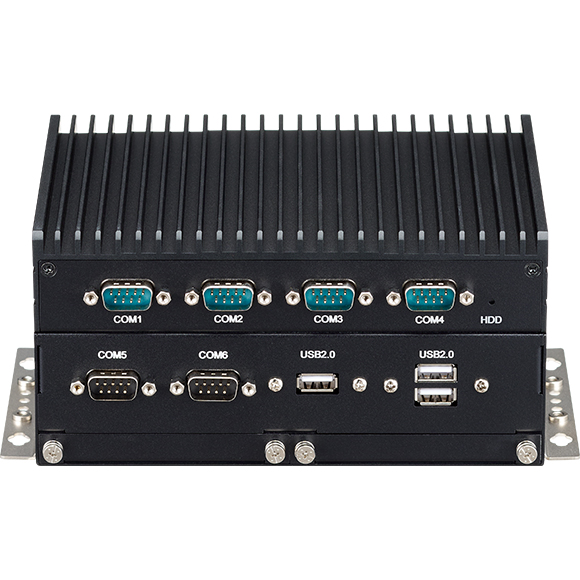

Neu-XE102-N97-6C2S
Edge Computing System Powered by Intel® Processor N97- Main Feature
- Intel® Processor N97
- Slim compact chassis and fanless design
- 1 x DDR4 3200 SO-DIMM, up to 16GB
- Support 2 x HDMI® 1.4 output 4K@30Hz
- Rich I/O connectivity: 2 x 2.5GbE LAN, 3 x USB 3.2, 4 x USB 2.0, 6 x COM
- 1 x M.2 Key M 2242 for supporting PCIe storage device
- 2 x 2.5” SSD tray for supporting SATA storage
- 1 x Mini PCIe slot supports Wi-Fi/BT/4G LTE module
- TPM 2.0 design for security
- Support power input 12V DC
The Neu-XE102-N97-6C2S is powered by the Intel® Processor N97, which features upgraded computing performance, low power consumption, and a rich set of integrated IoT features. It supports dual HDMI® 1.4 display outputs, dual 2.5GbE LAN ports, three USB 3.2 ports, four USB 2.0 ports, two RS-232/422/485 ports, four RS-232 ports, two 2.5” SSD trays and an M.2 Key M 2242 storage slot that supports PCIe and SATA format. In addition, the Mini PCIe slot supports LTE and Wi-Fi 6/6E module. With LTE and Wi-Fi communication, it provides wide-area coverage and real-time transmission for gateway applications.
With its fanless design and extended durability, it can further support a wide range of applications, including IoT gateways, self-service kiosks, endless aisles, QSRs, drive-thru kiosks, bus stops, digital transit information signs, intelligent pole/lighting systems, and information display systems such as PIDS for smart cities.
