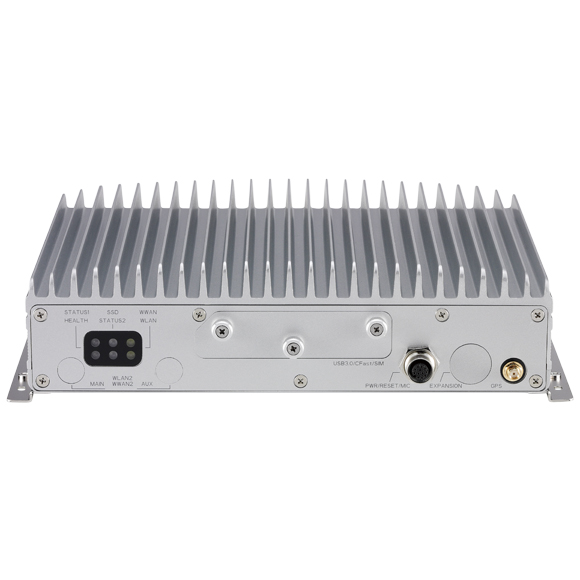

MVS 5600-IP

In-Vehicle IP65-rated Box Computer
  • Main Feature
  • IP65-rated rugged design
  • Intel® Core™ dual core i7-6600U/i3-6100U (Skylake)
  • 9~36VDC with ignition control
  • Built-in GPS with optional dead reckoning
  • Up to 2WLAN or two 3G/LTE via 3 mini-PCIe slots
  • Electrical isolation for CAN 2.0B & GPI/O
  • Optional OBD function (SAE J1939/J1708)
  • Rich and various GbE, USB 2.0/3.0, serial I/O and storages
  • Compliant to E-mark and ISO 7637-2
  • Compliant to MIL-STD-810G in vibration/shock
Add to Inquiry
Datasheet(PDF)

MVS 5600-IP, an IP65-rated rugged enclosure, maintenance-free box computer, is ideal for data acquisition in extreme environments throughout a number of in-vehicle applications, like transportation, heavy duty and waste management, etc. All external interfaces, including Gigabit Ethernet, isolated CAN bus and digit I/O, USB, and RS232/485 serial ports, are implemented on IP67-proof connectors for reliable data transmission in harsh and rugged environments.



MVS 5600-IP is a modular design, it is flexible to use other kinds of expansion boards to extend different I/O functions for quickly tailored to a vast number of applications. Inside the system, there’re four mini-PCIe slots with three SIM card slots offering WLAN, 3G/LTE cat.12, CAN OBD (SAE J1708/J1939) or CVBS functionality. Besides, it can operate at temperatures from -30°C to +60°C under fanless.



MVS 5600-IP supports 9~36VDC power input with ignition managemnt and 12VDC at 2A maximun power output. It is compliant to E-mark and ISO 7637-2 in vehicle certificate and meet US military MIL-STD-810G, category 4, composite wheeled vehicle, for vibration and shock criteria.
