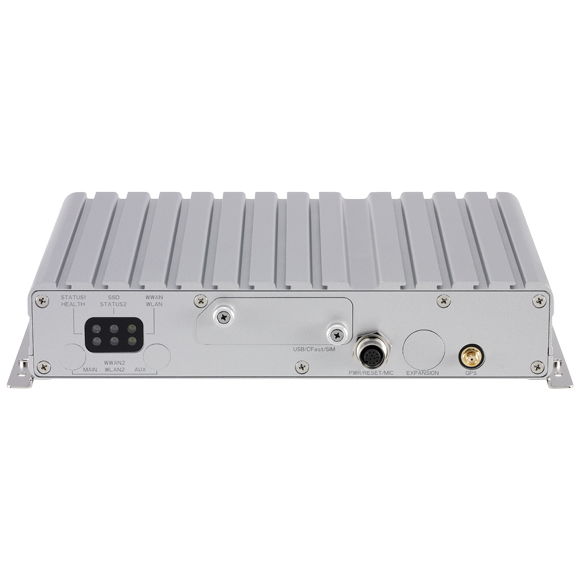

MVS 2620-IP

In-Vehicle IP65-rated Box Computer
  • Main Feature
  • IP65-rated rugged design
  • Intel Atom® x7, 4c, 2.0GHz E3950 (Apollo-lake)
  • 9~36VDC with ignition control
  • Built-in GPS with optional dead reckoning
  • Up to two WLAN or two 3G/LTE via 3 mini-PCIe slots
  • Electrical isolation for CAN 2.0B & GPI/O
  • Optional OBD function (SAE J1939/J1708)
  • Rich and various GbE, USB 2.0, serial I/O and storages
  • Compliant to E-mark and ISO 7637-2
  • Compliant to MIL-STD-810G in vibration/shock
Add to Inquiry
Datasheet(PDF)

MVS 2620-IPK (P/N: 10VS0262000X0)
Intel Atom® 4c E3950 (Apollo-lake) 2.0GHz, 4GB DDR3L industrial grade, 2 x GbE, VGA output, 3 x RS-232, 2 x RS-485, 3 x USB2.0, 12VDC output, 1 x CAN 2.0B



Cables Kit (P/N: 10VS0262001X0)
External cables for all the communication ports
