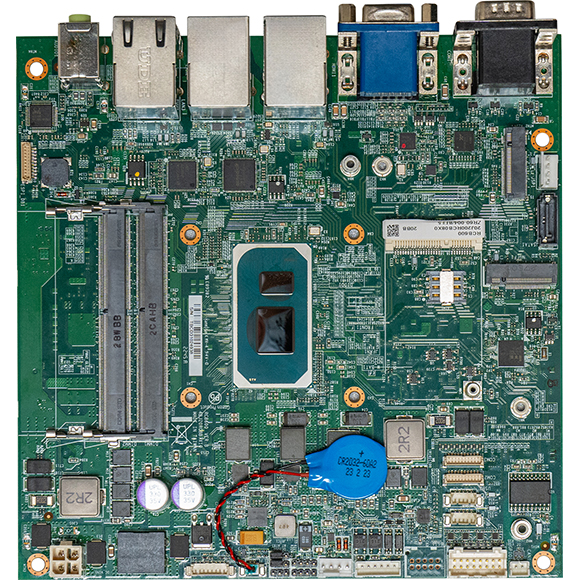

RCB 600

Mini-ITX Tiger Lake-UP3 Intel® 11th Gen Core™ i7/i5/i3
  • Main Feature
  • 11th Gen Intel® Core™ i processors
  • 1 x VGA and 1 x HDMI display ports
  • 2 x SO-DIMM DDR4 with non-ECC 3200MHz up to 64GB
  • 2 x Intel® GbE LAN ports and 1 x 2.5 GbE LAN
  • 7 x USB 3.2 (Gen1), 4 x USB 2.0
  • 2 x RS232 and 2 x RS232/422/485
  • 1 x SATA 3.0 port
  • 1 x Full size mini-PCIe slot
  • 2 x M.2 Key B
  • Onboard TPM
  • 24V DC input
Add to Inquiry
Datasheet(PDF)
CPU Support 11th Gen Intel® Core™ i processors i7-1185G7E (4C, 1.8GHz, up to 4.4GHz, TDP-up 28W) standard i5-1145G7E (4C, 1.5GHz, up to 4.1GHz, TDP-up 28W) optional i3-1115G4E (2C, 2.2GHz, up to 3.9GHz, TDP-up 28W) optional
Main Memory DDR4 3200 SO-DIMM sockets supported dual channel, max 64GB
Display Option 1 x VGA (resolution up to 1920 x 1080@60Hz) 1 x HDMI 1.4b (resolution up to 3840 x 2160@30Hz) Tip: Multiple display: (VGA+HDMI)
System 7 x USB 3.2 (Gen1), 4 x USB 2.0 2 x RS232, 2 x RS232/485/422, 1 x CAN bus Realtek HDA Codec 1 x Front panel header, 16 bit digital I/O (8-in/8-out), 2 x DI/DO WDT, SMBus, onboard TPM 1 x Fan connector
Storage 1 x SATA 3.0, 1 x SATA power connector (+5V) 1 x M.2 2242/2280 Key B (support SATA/PCIe)
Expansion Slot 1 x Full size mPCIe x1 with nano SIM (support PCIe/USB 2.0 Interface) 1 x M.2 3052/3042 Key B (for LTE 5G), (USB 3.2 (Gen1)/PCIe) with nano SIM
Rear I/O 6 x USB 3.2 (Gen1) 1 x VGA, 1 x HDMI 1.4b 2 x DB9 (by COM 1,2) 3 x GbE LAN
- LAN1: Intel® I219-LM
- LAN2: Intel® I210-AT
- LAN3: Intel® I226-IT 1 x 2 ports HD Audio Jack (Mic-in, Line-out)
Internal I/O 2 x USB 2.0 4 x serial ports:
- 2 x RS232 (by COM 3,4)
- 2 x RS232/485/422 (by COM1,2) 1 x CAN Bus 1 x Front panel header, 1 x 16 bit digital I/O (8-in/8-out) 2 x DI/DO, WDT, SMBus HA Audio:
- 1 x Line-out, 1 x Mic-in 1 x 4-Pin DC-in (+24V)
Power Requirement 1 x 4-pin (2 x 2) ATX power connector
- Input power DC 24V Support both AT and ATX power supply mode
Dimension 6.7”x 6.7” (170mm x 170 mm)
Environment Board level operation temperature: 0°C to 60°C Storage temperature: -40˚C to 85˚C Relative humidity:
- 0% to 90% (operating, non-condensing)
- 0% to 90% (non-operating, non-condensing)
Certifications CE/FCC Class A&IEC 61326-3-1
Support OS Windows 10 (64bit) Ubuntu 21.04.0/Kernel 5.8
