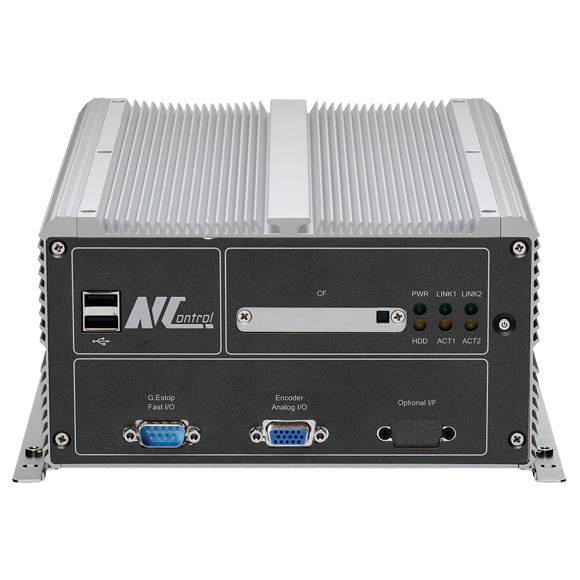

NControl30D (EOL)

The Comprehensive CNC Solution for 2D/3D Special Machining
  • Main Feature
  • Support 2D½ & 3D CNC machining
  • Support EtherCAT and MechatrolinkIII protocols
  • G/M Code supported
  • Tool Center Point (TCP) Support
  • Look ahead speed planning (up to 1024 blocks)
  • High speed machining with polynomial interpolation
  • TCP with high speed machining
  • Multiple CNC channels supported
  • Up to 24 channels can be customized
Add to Inquiry
Datasheet(PDF)
System Intel® Core™ 2 Duo P8400 processor pre-installed 2GB DDR3 SDRAM, pre-installed 32GB SSD pre-installed Windows CE 6.0 pre-installed VGA/DVI-I independent display 2 x Intel® GbE LAN ports (support WoL & LAN teaming) 1 x DB44 Serial Port for 4 x RS232 (COM2: RS232/422/485 with Auto Flow Control) 6 x USB2.0 ports 1 x PS2 Connector supporting KB/MS Fast I/O: 4 digital in / 4 digital out Analog I/O: 1 in (16-bit)/1 out (16-bit) Encoder: 1 in (A/B/Z phase)
CNC Control Axes Management
- Circular 3D interpolation
- Rollover Axes
- Gantry Axes
- Dynamic follower axes Canned Cycles
- Spot-facing (G82)
- Deep drilling with chip take out (G83)
- Tapping (G84)
- Reaming or tapping by Tapmatic (G85)
- Boring with spot facing (G89) Motion control types
- G code ISO 6983 programming
- M, S, T functions programming
- Look Ahead (up to 1024 blocks)
- Velocity Feed Forward (VFF) Tool Centre Point (TCP)
- TCP for Double Twist and Prismatic Heads with 2 or 3 rotary axes
- TCP for non-standard kinematics Special Feature
- Bidirectional pitch compensation
Optional Remote I/O Modular type
- Coupler: C-101
- Digital I/O module: E-101 / E-201 / E-202
- Analog I/O module: E-501 Terminal type
- Digital I/O module: AXE-9200
Power Requirements DC input range: +16 to 30VDC input ATX Power mode (Optional AC/DC 120W power adapter)
Environment Operating temperature:
Ambient with air flow: -5°C to 55°C (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) Storage temperature: -20°C to 80°C Relative humidity: 10% to 93% (Non-Condensing) Shock protection:
- HDD: 20G, half sine, 11ms, IEC60068-2-27
- CF: 50G, half sine, 11ms, IEC60068-2-27 Vibration protection w/HDD Condition
- Random: 0.5Grms @ 5~500 Hz according to IEC60068-2-64
- Sinusoidal: 0.5Grms @ 5~500 Hz according to IEC60068-2-6
Certifications CE FCC Class A
