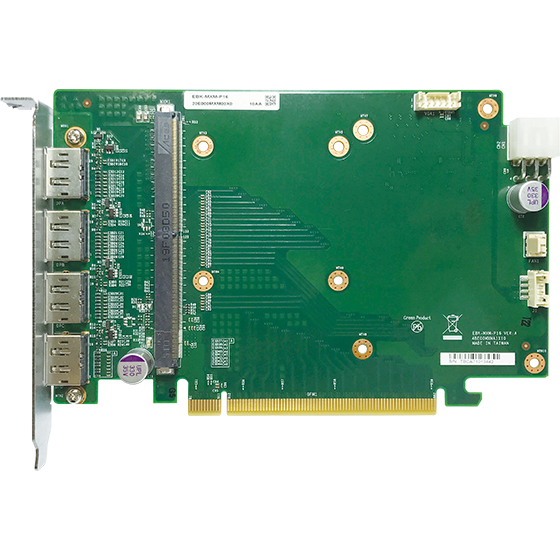

EBK-MXM-P16

MXM 3.1 to PCIe16x Riser Card
  • Main Feature
  • Support NVIDIA MXM3.1 graphic card
  • Support MXM type A & type B
  • Support MXM TDP 120W
  • Display ports : 4 x DP, 1 x VGA (by MXM design)
  • 1 x Fan connector (smart fan by MXM design)
  • 1 x 6-pin connector for Ext MXM power connector
Add to Inquiry
Datasheet(PDF)
NVIDIA MXM3.1 Graphic Card MXM-T serial & MXM-P serial & MXM-R serial Support MXM type A (82 x 70mm) & type B (82 x 105mm) Support TDP 120W
Display 4 x DP ports resolution: 8K (7680 x 4320) 60Hz, 4K 120Hz by MXM display design 1 x VGA resolution up to 1920 x 1080 @ 60 Hz by MXM display design
Power Requirement 1 x Fan connector 1 x 6-pin connector for Ext MXM power connector
Dimensions PCIe half size. 106.68 × 175.26mm & (H:2 slot)
Environment Board level operation temperature: 0°C to 60°C Storage temperature: -40˚C to 85˚C Relative humidity:
- 0% to 95% (operating, non-condensing)
- 0% to 95% (non-operating, non-condensing)
Certifications Meet CE/FCC Class A
