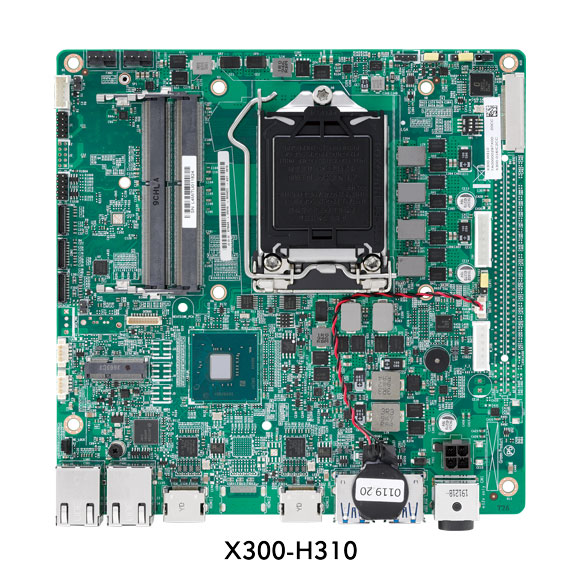

X300

Mini-ITX, 8th Generation Intel® Core™ i7/ i5/ i3 Process Family with Q370/H310 HDMI, LVDS, M.2M, M.2E, 2 x GbE, 10 x USB, 3 x COM, 12V DC
  • Main Feature
  • Support socket LGA1151 for 8th generation Intel® Core™ i7/i5/ i3 (codenamed Coffeelake) processors
  • Intel® Q370/H310 chipset
  • 2 x 260-pin SO-DIMM DDR4 up to 32GB
  • Triple display: HDMI/ LVDS
  • 2 x GbE with Intel® I219-LM and i211-AT
  • 1 x M.2 2230 Key E
  • 1 x SATA 3.0 (Q370)
  • 3 x COM, 10 x USB, 1 x Audio
  • 1 x PCIe x16 (Q370) or 1 x LVDS (H310)
Add to Inquiry
Datasheet(PDF)
CPU Support Socket LGA1151, Intel® 8/9th Generation Core™ i9/i7/i5/i3 processor, 14nm process
- i3-8100T Quad cord, 3.10 GHz, TDP 35W
- i5-8500T 6 cord, 2.10 GHz, TDP 35W
- i7-8700T 6 cord, 2.40 GHz, TDP 35W
- i3-8300 Quad cord, 3.70 GHz, TDP 65W
- i5-8500 6 cord, 3.0 GHz, TDP 65W
- i7-8700 6 cord, 3.2 GHz, TDP 65W
- i3-9100TE Quad cord, 2.20 GHz, TDP 35W
- i5-9500TE 6 cord, 2.2 GHz, TDP 35W
- i7-9700TE 8 cord, 1.8 GHz, TDP 35W
- i9-9900T 8 cord, 2.1 GHz, TDP 35W
Chipset Intel® PCH Q370 Intel® PCH H310
Graphics Intel® UHD Graphics 630
Main Memory 2 x 260-pin SO-DIMM socket, support up to DDR4 2400/2666MHz, non ECC, un-buffered memory up to 32GB
Onboard LAN 2 x RJ45 connectors with Intel® I219-LM and i211-AT GbE controller support PXE boot from LAN, wake on LAN function
Display Q370
- 3 x HDMI 2.0 connector (resolution up to 4096 x 2160 @ 60Hz) H310
- 2 x HDMI 2.0 connector (resolution up to 4096 x 2160 @ 60Hz)
- 1 x LVDS (support dual port, resolution up to 1920 x 1200 @ 60Hz)
I/O Interface COM1:RS232/422/485, 10-pin wafer with cable JST connector COM2/3: RS232, 10-pin wafer with cable JST connector 4-in/4-out GPIO USB 3.0 x 4 ports edge connector USB 2.0 x 2 ports by 6P, 2.5mm WtoB connector 1 x 5-pin connector with stand-by LED/PWR LED/HDD LED 2 x 4-pin connector support CPU/System fan 1 x 2-pin header support reset button 2 x 4-pin connector support line-out/mic-in Q370
- USB 2.0 x 4 ports by 2x5P, 2.0mm pin header
- 1 x 4-pin header support power button H310
- USB 2.0 x 2 ports by 2x5P, 2.0mm pin header
- 1 x 2-pin connector support power button
Expansion Q370
- 1 x M.2 2230 Key E slot, support Wi-Fi with Bluetooth module
- 1 x PCIe x16 slot
- 1 x Onboard TPM2.0 IC H310
- 1 x M.2 2230 Key E slot, support Wifi with Bluetooth module
- 1 x LVDS connector
Audio Realtek ALC3236
Storage Q370
- 1 x M.2 2280 Key M SSD with SATA/PCIe signal
- 1 x 7-pin SATA 6Gb/s connector supports SATA-DOM
- 1 x 4-pin connector for SATA power H310
- 1 x M.2 2280 Key M SSD with SATA signal
Power Requirements 5-pin DC power input jack on edge I/O +12V DC input only AT/ATX mode (by jumper setting default-AT) 4-pin power connector (right angle) for DC power input +12V DC input only
Environment Operating temperature: 0°C to 60°C Humidity: 95% (non-condensing)
Certification Meet CE (EMC EN55032 +EN55024) FCC Class A (EMI part 15B)
Dimensions 170mm (L) x 170mm (W) (6.7”x 6.7”)
Add to Inquiry
