NEX 614B

Mini –iTX PC Intel® Skylake/Kabylake
  • Main Feature
  • Intel® 7th/6th Generation Core™ i7/i5/i3, LGA1151 socket processor,
    max. 65WTDPs, LGA1511, H110
  • Support two DDR4 SO-DIMM socket
  • Support multiple display from two HDMI, LVDS
  • 2 x SATA III, 2 x GbE LAN, 2 x COM, 4 x USB 3.0, 4 x USB 2.0, 8-bit DIO,
    HD Audio, 1 x PCIe 2.0 x1, 2 x mini-PCIe
  • DC input +12V
  • Low profile system
  • Optional: Wi-Fi module/TPM module
Add to Inquiry
Datasheet(PDF)

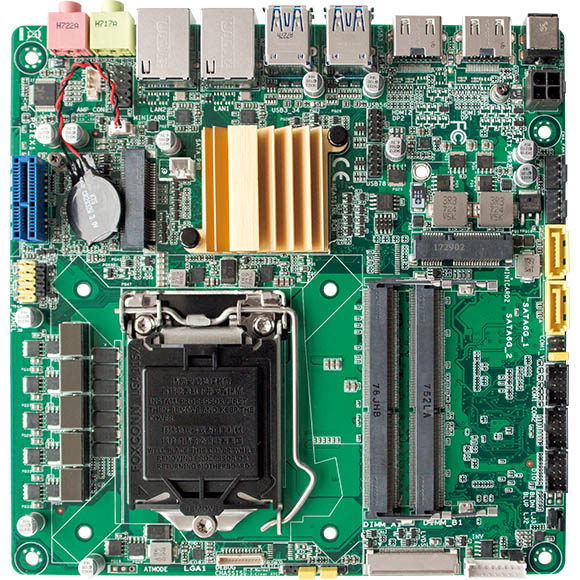

NEX 614B is Mini-ITX PC based on Intel® 7th/6th Generation Core™ i7/i5/i3, LGA1151 socket processor (codenamed “Skylake/Kabylake”) to support 65W CPU. NEX 614B operates temperature range from 0°C to 60°C. This is aimed at embedded applications for outdoor or semi-outdoor environment. Such as kiosk, small smart equipment, outdoor systems installed in harsh environments, home automation and thin clients…etc.



NEX 614B supports a maximum memory of 32GB DDR4 SDRAM. Also, it offers display outputs of HDMI with 4K/2K@30Hz, in order to provide the flexibility of supporting a range of peripherals and high resolution.
