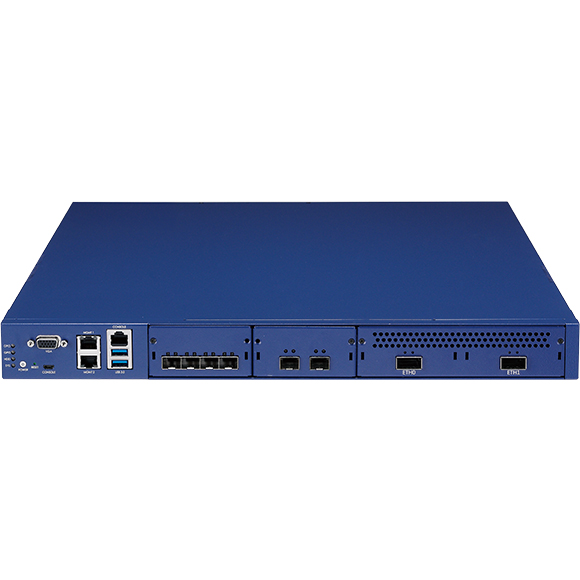

NSA 7141

Intel® Xeon® Processor Scalable Family, 1U Rackmount with 4 LAN Module & PCIEx16 extension
  • Main Feature
  • 1U compact rackmount size
  • Single Intel® Xeon® processor scalable family (Skylake-EP),
  • Intel® Xeon® Gold 6152 processor (30.25M Cache, 2.10 GHz) 140W
  • 8 x DDR4 288-pin DIMM slots, support 2133/2400/2666 ECC & REG, up to 256 GB
  • 4 x PCIe x8 LAN module slots, up to 100G QSFP28
  • 2 x 2.5” SSD/HDD internal bracket with vibration protect
  • 1 x M.2 2242 SATA slot
  • 1 x Full size PCIe x16 expansion slot
  • 2+1 Swappable fan -> 1 x fixed fan + 2 x swappable fan18000 RPM
  • 450W ATX redundant power supply
  • TPM & IPMI module option
Add to Inquiry
Datasheet(PDF)
Main Board NSB 6141 (PCH C621)/NSB 6141A (PCH C626) Single Intel® Xeon® processor scalable family Support 9.6 GT/s QPI speed 1 x PCIe x16 expansion slot
LAN Features Optional LAN module Support Intel® i350/ Intel® XL710 copper/fiber ports Support 10/100/1000M,10G SFP+,100G QSFP28 link speed LAN bypass
*please see LAN module list information
I/O Interface-Front Power status/HDD status/HW monitor/GPIO LEDs 1 x Power button switch 1 x Micro USB type console port 1 x HDMI DisplayPort 2 x Management LAN port (i210-AT) 1 x RJ45 type console port 2 x USB 3.0 port 4 x LAN module slot
I/O Interface-Rear 1 x PCIe x16 expansion slot 2 x Swappable system fan
Main Memory 8 x 288-pin DDR4 2400/2666 DIMM sockets, up to 256GB ECC & REG SDRAM
Devices 2 x 2.5” HDD internal fixed 1 x SATA DOM 1 x M.2 2242 B-Key
Power Input ATX 600W redundant power supply
Chassis Dimensions Chassis dimension: 438 mm x 600 mm x 44 mm
Weight Without packing: 12 kg With packing: 14 kg
Environment Operating temperatures: 0°C~40°C Storage temperature: -20°C~75°C Relative humidity: 10%~90% non-condensing
Certifications (Plan) CE approval FCC Class A UL
