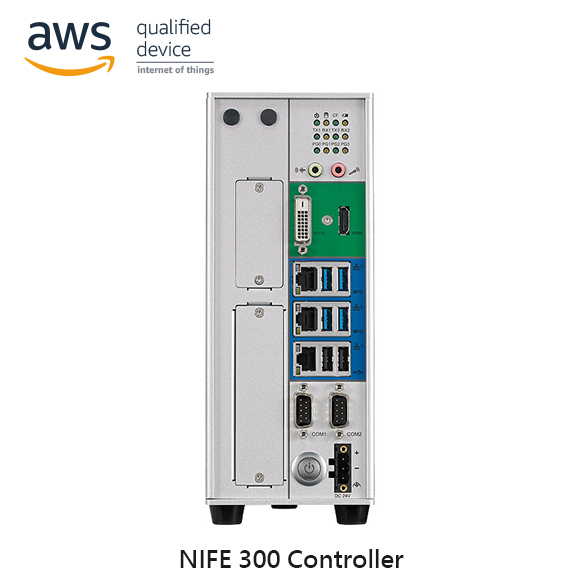

NIFE 300/300P2E

Intel® Core™-i Automation PC-Based Controller
  • Main Feature
  • Distributed, modularized and open-architecture controller
  • Compliant with Industrial IEC61131-3 Programming Languages (LD/FBD/SFC/IL/ST/CFC)
  • Support 1024+ I/O Points and maximum 64 Axis for motion control
  • Support PLC Handler APIs and OPC-UA server for Client/M2M communication
  • Available HMI APIs for human-machine interface
  • Support industrial Ethernet Fieldbus protocols (EtherCAT, EtherNet/IP, PROFINET)
  • Support industrial Fieldbus protocols (PROFINET, PROFIBUS, DeviceNET) by optional FBI
  • Available NEXCOM IoT Studio for cloud and data acquisition
  • Support Multi-Core, Multi-Tasking powered by Intel® Core™-i processor
Add to Inquiry
Datasheet(PDF)

* HMI Software License Exclude

System Processor Main
Memory
Storage Software Package SoftPLC SoftMotion SoftMotion
CNC
HMI (Optional)
JMobile TargetVisu

NIFE300
P30 Controller A0J70030000X0

Core-i i3-6100TE

4G 32G

P30 Windows WES7 Package (P/N: 88J70030013X0)
P30 Linux Ubuntu Package (P/N: TBC)

v - - v -

NIFE300
M60 Controller A0J70030000X0

Core-i i3-6100TE 4G 32G

M60 Windows WES7 Package (P/N: 88J70030014X0)
M60 Linux Ubuntu Package (P/N: TBC)

v v - - v
NIFE300
M60 Controller A0J70030000X0
Core-i i5-6500TE 4G 32G

M60 Windows WES7 Package (P/N: 88J70030015X0)
M60 Linux Ubuntu Package (P/N: TBC)

v v - - v
NIFE300
R20 Controller A0J70030000X0
Core-i i3-6100TE 8G 64G

R20 Windows 7 Pro Emb Package (P/N: 88J70030016X0)
R20 Linux Ubuntu Package (P/N: TBC)

v v v - v
NIFE300
R60 Controller A0J70030000X0
Core-i i3-6100TE 8G 64G

R60 Windows 7 Pro Emb Package (P/N: 88J70030017X0)
R60 Linux Ubuntu Package (P/N: TBC)

v v v - v
NIFE300
R60 Controller A0J70030000X0
Core-i i5-6500TE 8G 64G

R60 Windows 7 Pro Emb Package (P/N: 88J70030018X0)
R60 Linux Ubuntu Package (P/N: TBC)

v v v - v
NIFE300P2
R60 Controller A0J70030001X0
Core-i i7-7600TE 8G 64G

R60 Windows 7 Pro Emb Package (P/N: 88J70030019X0)
R60 Linux Ubuntu Package (P/N: TBC)

v v v - v
NIFE300
Bare-bone System 10J70030000X0
Option Option Option

Support
- Win8 32-bit/64-bit, WES8 32-bit/64-bit
- Win7 32-bit/64-bit, WES7 32-bit/64-bit
- Linux Kernel version 3.8.0

- - - - -
NIFE300P2 Bare-bone System 10J70030001X0 Option Option Option

Support
- Win8 32-bit/64-bit, WES8 32-bit/64-bit
- Win7 32-bit/64-bit, WES7 32-bit/64-bit
- Linux Kernel version 3.8.0

- - - - -
System Optional Power Adapter
Power Adapter

24V, 120W AC to DC power adapter w/o power cord (P/N: 7400120022X00)

24V, 180W AC to DC power adapter w/o power cord (P/N: 7400180005X00)



Optional Modules

FBI Fieldbus Module
P/N:10J50090E08X0
EtherCAT Protocol
P/N:10J50090E09X0
PROFIBUS Protocol
P/N:10J50090E10X0
DeviceNet Protocol
P/N:10J50090E15X0
CANopen Protocol
FBI Fieldbus Module COM Module

P/N:10J50090E20X0

EtherNet/IP Protocol

P/N:10J50090E21X0
PROFINET Protocol
P/N:10JK0ECOM04X0
NISKECOM3 4xRS485
P/N:10JK0ECOM06X0
NISKECOM4 4xRS232
LAN Module Power Pack
P/N:10JKLAN0401X0
NISKLAN04 2XI210AT
P/N:10JKLAN0101X0
NISKLAN01 1X82574L
P/N:10JK00BAT00X0
NISKBAT MAIN
P/N:10JK00BAT01X0
NISKBAT EXPANSION
Persistent Memory Module
P/N:10JKNVRAM00X0
NISK-NVRAM 1MB
