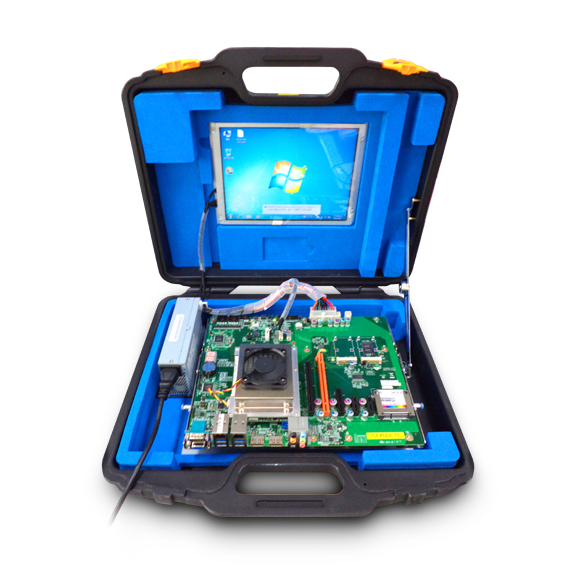

ICEK 8060-T6

COM Express Type 6 Starter-Kit Integrated COM Express Compact or Basic Module Bootable mini-SATA/ CFast-SSD on ICEB8060 with 10.4” LCD and Flex-ATX 110/220V AC input
  • Main Feature
  • COM Express Type 6, COM.0, Rev2.0 Evaluation Starter-Kit
  • COM Express Compact or Basic Modules with passive or active fan-sink
  • Bootable mini-SATA/ CFast-SSD with 10.4” LCD/ 18-bit LVDS Display
  • PCIex16, PCIex4, 2x PCIex1, 1x PEG/ DDI/ SDVO and mini-PCIe for Wi-Fi
  • 3xDDI/ 4xUSB3.0/ 2x SATA3.0/ 6x COM/ VGA/ LVDS/ 2x GbE/ 5.1 Audio S/PDIF
  • Integrated Flex-ATX PSU for AC 110/220V Input
Add to Inquiry
Datasheet(PDF)

ICEK8060-T6 (P/N: MISC by Project Registered)
COM Express Type 6 Starter Kit ready for NEXOM COM Express Type 6 Basic modules assembly SO-DIMM system memory with passive/ active fan-sink onto Type 6 carrier ICEB8060 with bootable mini-SATA/ CFast-SSD, pre-load Win 7 trial version OS with 10.4" LCD/ LVDS display and build-in Flex-ATX PSU AC 110/220V Input



NEXCOM Computer-On-Modules Support List:



Models   ICES667 ICES668
Processors SKUs   3rd. Generation Core™ i7/ i5/ i3
rPGA 988
3nd. Generation Core™ i7/ i5/ i3
FCBGA 1023
Chipset   QM77/ HM76 QM77
Max. Memory   16GB 16GB
SO-DIMM   2 2
Memory Type   non-ECC ECC-DDR3
Heatspreader   Yes Yes
Heat-Sink   Yes Yes
Cooling Fan   Yes Yes
