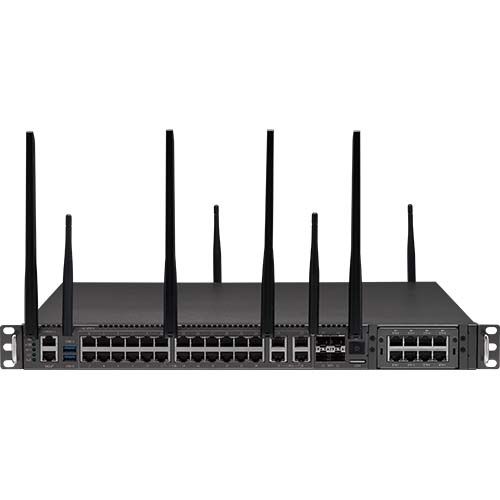

FTA 1170

1U Rackmount Professional uCPE w/ Intel Atom® Processor, 24 x 2.5GbE & 4 x 10GbE Copper Ports, 4 x 10GbE Fiber Ports, 1 x LAN Module Slot
  • Main Feature
  • Intel Atom® P5300 processor series SoC, BGA type
  • 4 x 288-pin DDR4 DIMM socket
  • 1 x mini-PCIe slot for Wi-Fi 6 module
  • 1 x M.2 3052 Key B for 5G FR1 module
  • 1 x SO-DIMM DDR4 260-pin for BMC module
  • 24 x 2.5GbE RJ45 switch ports
  • 4 x 10GbE RJ45 NIC ports
  • 2 x 10GbE SFP+ switch ports
  • 2 x 10GbE SFP+ NIC ports
  • 1 x PCIe Gen3 x16 interface LAN module slot
Add to Inquiry
Datasheet(PDF)
Main Board Intel Atom® processor P5300 SoC, BGA type, 8-24 cores (up to 85W), w/ Intel® QAT
Main Memory 4 x DDR4 2933 ECC RDIMM, UDIMM sockets, max. memory capacity up to 256GB for RDIMM and 128GB for UDIMM
Storage 1 x 8G eMMC 5.1 onboard 2 x 2.5” internal SSD/HDD 1 x M.2 2280 NVMe (Key M, PCIe x4)
Interface External Button: reset LED for power/HDD/LAN/5G/Wi-Fi 6/PoE status 1 x RJ45 console port 1 x RJ45 management port 2 x USB 3.0 port 1 x nano-SIM slot 24 x 2.5GbE switch ports with PoE+ (FTA 1170) /24 x 2.5GbE switch ports
(FTA 1170A) 4 x 10GbE RJ45 NIC with PoE+ (FTA 1170)/ 4 x 10GbE RJ45 NIC ports (FTA 1170A) 2 x 10GbE SFP+ switch ports 2 x 10GbE SFP+ NIC ports 8 x SMA connectors (front: 4 x for 5G/4G LTE, 2 x for Wi-Fi 5/6 antennas; back: 2 x for Wi-Fi 5/6 antennas) 1 x PCIe Gen3 x16 interface LAN module slot
Interface Internal 1 x mini-PCIe slot for Wi-Fi 6 1 x M.2 3052 Key B for 5G 1 x SO-DIMM DDR4 260-pin for IPMI module 4 x SPI connectors for PoE+ modules 1 x TPM header
Power 1 x CRPS 550W 12V AC PSU + 1 x CRPS 1000W 54V PoE+ PSU (FTA 1170) 2 x CRPS 550W 12V AC Redundant PSU (FTA 1170A)
Dimension and Weight Chassis dimension (mm): 438mm x 542 mm x 44mm (W x D x H) Package dimension(mm): 570mm x 741 mm x 226mm (W x D x H) Without packing: 10.1Kg With packing: 12.1kg
Environment Operating temperature: 0°C~40°C Storage temperature: -20°C~80°C Relative humidity: 10%~90% non-condensing
Certification CE/FCC class A CE-LVD
