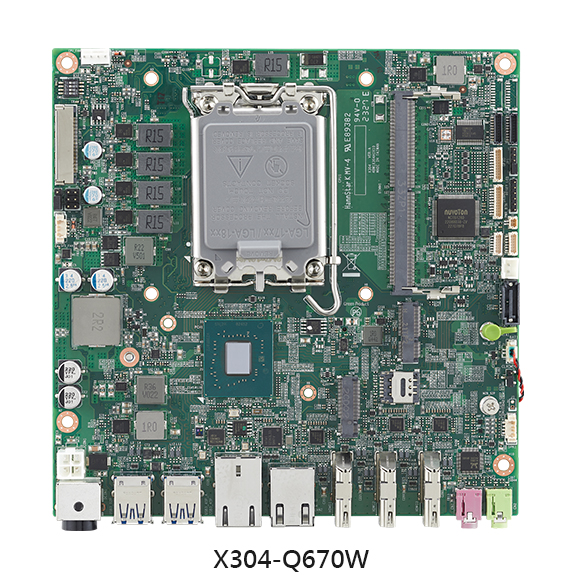

X304 Series

Mini-ITX Embedded Computing Board
Powered by 13/12th Intel® Core™ Processor
  • Main Feature
  • 13/12th Intel® Core™ LGA 1700 socket type processors, 35W
  • Dual channel DDR5 SO-DIMM, max up to 64GB
  • 3 x HDMI 2.0 output, support 4K@60Hz and 1 x LVDS (support by Q670)
  • Dual Intel® LAN ports
  • 2 x COM ports, 4 x USB 3.2, Mic-in/Line-out/Speaker-out
  • Onboard TPM 2.0 design for security advantage
  • Support Intel® AMT technology (Q670E only)
  • Multiple expansion slots: M.2 2280 Key M for storage, M. 2230 Key E for Wi-Fi, M.2 3052 Key B for LTE/5G
Add to Inquiry
Datasheet(PDF)
CPU Support 12/13th Gen Intel® Core™ i9/i7/i5/i3 LGA 1700 socket type processors, up to 35W
- Intel® Core™ i9-12900TE, 16 core, 1.1 GHz (P-Core) and 1GHz (E-Core), 30M Cache, 35W
- Intel® Core™ i7-12700TE, 12 core, 1.4 GHz (P-Core) and 1GHz (E-Core), 25M Cache, 35W
- Intel® Core™ i5-12500TE, 6 core, 1.9 GHz (P-Core), 18M Cache, 35W
- Intel® Core™ i3-12100TE, 4 core, 2.1 GHz (P-Core),12M Cache, 35W
- Intel® Core™ i9-13900TE, 16 core, 1.0 GHz (P-Core) and 800MHz (E-Core), 36M Cache, 35W
- Intel® Core™ i7-13700TE, 16 core, 1.1 GHz (P-Core) and 800GHz (E-Core), 30M Cache, 35W
- Intel® Core™ i5-13500TE, 14 core, 1.3 GHz (P-Core) and 1.1GHz (E-Core), 24M Cache, 35W
- Intel® Core™ i3-13100TE, 4 core, 2.4 GHz (P-Core),12M Cache, 35W
Chipset & Memory Intel® PCH Q670E Intel® PCH H610E 2 x 262-pin DDR5 SO-DIMM socket, supports up to 64G and un-buffered and non-ECC
Graphics & Display Intel® UHD Graphics 770 3 x HDMI 2.0 output, resolution up to 4096 x 2160@60Hz 1 x LVDS connector, dual channel, resolution up to 1920 x 1200@60Hz (Q670W SKU only, eDP can be selected by jumper)
Onboard LAN 2 x RJ45 connector with Intel® i226-V (2.5GbE) and 219-LM (GbE) LAN controller Support wake on LAN function
Audio Realtek ALC888S
I/O Interface on the Edge 3 x HDMI 2.0 output 1 x Intel® i219-LM(GbE) 1 x Intel® i226-V (2.5GbE) 4 x USB 3.2 (Q670W SKU) or 3 x USB 3.2+1 x USB 2.0 (H610 SKU) 1 x Mic-in, 1 x Line-out powered by Realtek ALC888S 1 x 12V DC or 12~24V DC Input (Q670W SKU only)
I/O Interface-Internal 1 x 4-pin connector for PWM smart FAN 1 x USB 2.0 header 1 x RS232 header(9-pin) TPM 2.0 onboard
Storage 1 x M.2 2280 Key M (PCIe x4 only), support optional storage modules
Expansion 1 x M.2 2230 Key E (PCIe x1), support optional Wi-Fi modules
Power Requirements Operating temperature: 0°C to 60°C Storage temperature: -40°C to 80°C Humidity: 10 to 90% (non-condensing)
Certification CE Approval FCC Class A
Dimensions 146mm (W) x 102mm (D)
Operating System Win10/Win11/Linux
