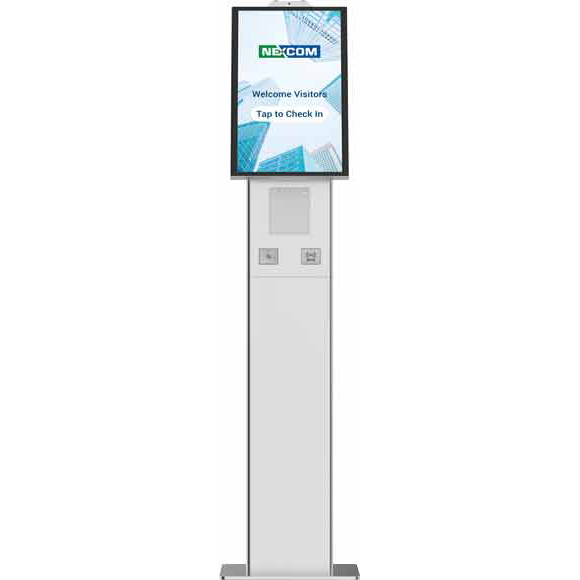

23.8” Self Service Kiosk with Multi-Touch Screen Powered by Intel® Apollo Lake J3455 Processor
  • Main Feature
  • Featured with rich devices to fulfill different demands
  • Fan-less design to meet 24/7 service requirement
  • Ergonomic design for self-service
  • Easy serviceability and upgradability
  • Multiple configurations available
  • Payment devices holder (by request)
  • Enhance customers’ in-store experience
  • Lower total cost of ownership (TCO)
Add to Inquiry
Panel LCD size: 23.8”, 9:16 Resolution: FHD 1080 x 1920 Luminance: 315 cd/m2 Contrast ratio: 1000 LCD color: 16.7M Viewing angle: 178 (H), 178 (V)
Touch Screen 10 points P-Cap (Projected Capacitive Touch) Optical bonding Glass surface treatment: AS Anti-Smudge Coating (Anti-fingerprint Coating)
System CPU : on-board Intel® Celeron® processor J3455, 1.50GHz, 2M cache Graphic : Intel® HD Graphics
Main Memory Pre-installed 4GB DDR3L 1866 MHz, non-ECC and un-buffered memory
Storage Device Pre-installed 64GB M.2 2242 Key M SSD
Expansion 1 x mini-PCIe full-size connector with SIM slot (full-size) onboard, support Wi-Fi/LTE module
Rear I/O Power switch 110~240V AC power inlet 1 x RJ45 with LEDs for Gigabit LAN 2 x USB 2.0
Peripherals Thermal printer
- 80mm standalone thermal printer with cutter 203 dpi and 180 mm/s supported (58mm: by request)
1D/2D Barcode Scanner
- Fixed mount barcode scanner, 640 x 480 CMOS, optimized to readbarcode from a mobile phone screen
Camera (optional) RFID/MSR card reader kits (option by request)
Mechanical & Environment Color/material: white/metal sheet
Environment Temperature
- Operating temperature: 0°C~50°C
- Storage temperature: -20°C~60°C
Operating humidity: 10%~90% relative humidity, non-condensing limits to be at 90%
Dimensions System: 338mm x 1486mm x 400mm (W x H x D) System: 30 kgs Package weight: 35 kgs
Power Supply Input: 100VAC to 240VAC
OS Support Lists Win10 64-bit Linux 4.1
